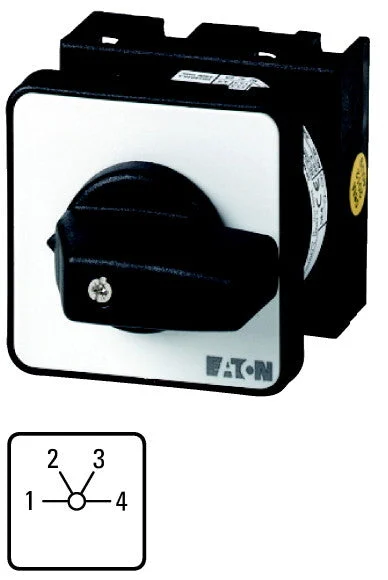

EATON INDUSTRIES T Control Switch – 012750

Eaton Moeller series T0 Step switches, T0, 20 A, flush mounting, 2 contact unit(s), Contacts: 4, 60 °, maintained, Without 0 (Off) position, 1-4, Design number 8231.

Specifications

Type of switch : Level switch
Number of poles : 1
Max. rated operation voltage Ue AC (V) : 690
Rated permanent current Iu (A) : 20
Number of switch positions : 4
With zero (off) position : No
With retraction in 0-position : No
Device construction : Built-in device
Width in number of modular spacings : 0
Suitable for floor mounting : No
Suitable for front mounting : Yes
Suitable for distribution board installation : No
Suitable for intermediate mounting : No
Complete device in housing : No
Type of control element : Toggle
Front shield size : 48×48 mm
Degree of protection (IP), front side : IP65
Degree of protection (NEMA), front side : 12
