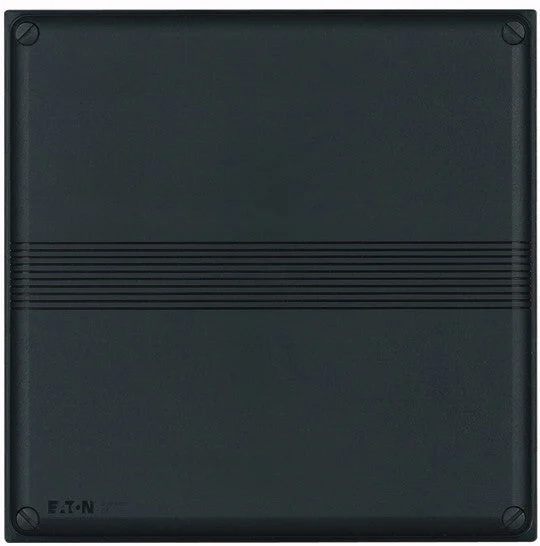

This busbar cabinet from Eaton Holec’s System 55 series is up to 63 amps (63A single-sided, 125A central) and features 5 rails (12x3mm). In addition, the track box has a plastic housing and opaque lid. The dimensions of the rail cabinet are 110 millimeters in height, 220 millimeters in width and 79 millimeters in depth. Furthermore, the System 55 busbar box has a protection rating of IP3X and is equipped with 4 connection points.
Specifications
Equipped with busbar : Yes
Rated current rail system (A) : 63
Material : Plastic
Height (mm) : 98
Width (mm) : 115
Depth (mm) : 225
Busbar distance (mm) : 20
Extension possible : Yes
Mounting method : Surface mounted (plaster)
With transparent cover : No
Short-circuit breaking capacity (Icw) (kA) : 25
Number of poles : 3
Degree of protection (IP) : IP3X
Degree of protection (NEMA) : Other
