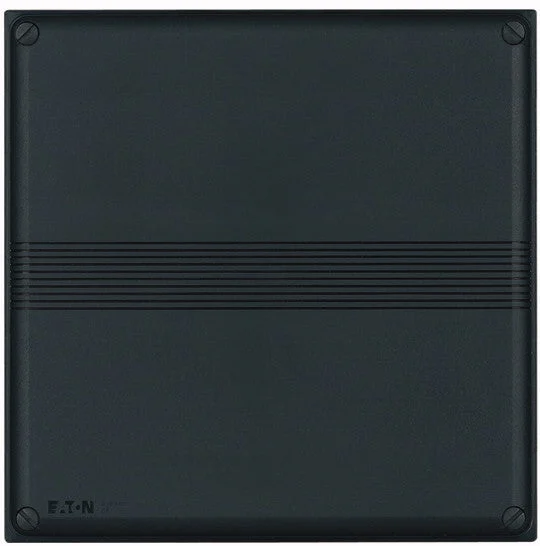

This busbar box from the System 55 series by Eaton Holec is suitable up to 125 amps (125A single-sided, 160 A central) and features 5 rails (15x4mm). In addition, the track box has a plastic housing and opaque lid. The dimensions of the rail cabinet are 220 millimeters in height, 220 millimeters in width and 79 millimeters in depth. Furthermore, the System 55 busbar box has a protection rating of IP3X and 5 busbar branch terminals of up to 10mm² are included.
Specifications
Equipped with busbar : Yes
Rated current rail system (A) : 125
Material : Plastic
Height (mm) : 220
Width (mm) : 220
Depth (mm) : 79
Busbar distance (mm) : 35
Extension possible : Yes
Mounting method : Surface mounted (plaster)
With transparent cover : No
Short-circuit breaking capacity (Icw) (kA) : 25
Number of poles : 3
Degree of protection (IP) : IP3X
Degree of protection (NEMA) : Other
