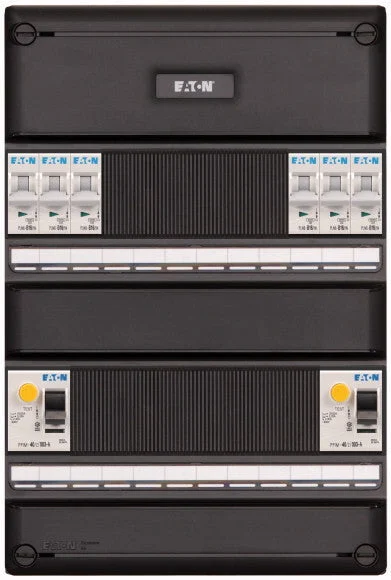

EATON INDUSTRIES System 55 Installation Cabinet – 1998265

The easily removable mounting frames of the System 55 group boxes feature integrated DIN profiles. The removability of the mounting frame allows the components to be assembled outside the cabinet. This Eaton Industries System 55 3 phase group box has 6 groups, 2 earth leakage circuit breakers and 3 earth leakage circuit breakers. The Eaton Industries System 55 group box is available in several variations.

Specifications

Mounting method : Surface mounted (plaster)
Number of phases : 3
Protection : Miniature- / earth leakage circuit breaker
Total number of groups : 6
Number of direct groups : 0
Number of light groups : 6
Number of groups behind earth leakage switch : 6
Number of earth leakage circuit breakers : 2
Number of earth leakage switches 30 mA : 2
Number of earth leakage switches 300 mA : 0
Number of arc fault detection devices AFDD : 0
Protection main switch : No
Number of poles main switch : 0
Main switch rated current (A) : 0
Protection incoming RCD : No
Protection high integrity : No
Protection split load : No
Protection dual RCD : No
Number of outgoing ways : 2
Suitable for data : No
Cooker group : None
Cooker group suitable as power current group : No
With socket outlet : No
With bell transformer : No
Over voltage protection : No
With meter : No
Material : Plastic
Degree of protection (IP) : IP3X
Height (mm) : 131
Width (mm) : 230
Width in number of modular spacings : 12
Depth (mm) : 395
Built-in depth (mm) : 0 mm to 0 mm
Extension possible : Yes
With transparent cover : No
Lockable : No
