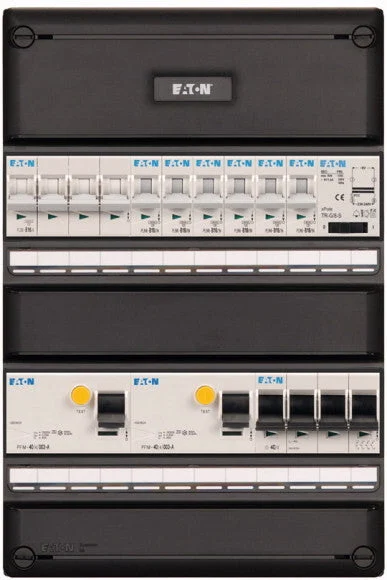

EATON INDUSTRIES System 55 Installation Cabinet – 1907561

Eaton Industries System 55 FLEX installation cabinet, (HxWxD) 140x234x401mm, cooking group 3-phase, with bell transformer, protection installation/earth leakage circuit breaker, total number of groups 7, cooking group suitable as a power group, 3 phases, 6 light groups, 2 earth leakage switches 30mA, degree of protection (IP) IP3X.

Specifications

Mounting method : Surface mounted (plaster)
Number of phases : 3
Protection : Miniature- / earth leakage circuit breaker
Total number of groups : 7
Number of direct groups : 0
Number of light groups : 6
Number of groups behind earth leakage switch : 7
Number of earth leakage circuit breakers : 0
Number of earth leakage switches 30 mA : 2
Number of earth leakage switches 300 mA : 0
Number of arc fault detection devices AFDD : 0
Protection main switch : No
Number of poles main switch : 4
Main switch rated current (A) : 40
Protection incoming RCD : No
Protection high integrity : No
Protection split load : No
Protection dual RCD : No
Number of outgoing ways : 6
Suitable for data : No
Cooker group : 3-phase
Cooker group suitable as power current group : Yes
With socket outlet : No
With bell transformer : Yes
Over voltage protection : No
With meter : No
Material : Plastic
Degree of protection (IP) : IP3X
Height (mm) : 140
Width (mm) : 234
Width in number of modular spacings : 12
Depth (mm) : 401
Built-in depth (mm) : 0 mm to 0 mm
Extension possible : Yes
With transparent cover : No
Lockable : No
