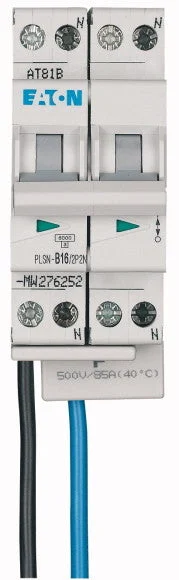

The System 55 FLEX stove group is quick and easy to install in System 55 FLEX cabinets. In addition, this circuit breaker (stove group) is also suitable for use in Medusa FLEX cabinets. The installation time of System 55 circuit breakers is minimal because the DIN modular components are simply snapped on and the wiring is already optimally matched to the group boxes. Includes jumper combs on the feeding side. Eaton Holec System 55 FLEX circuit breakers are available in several variants.
Specifications
Built-in depth (mm) : 60
Release characteristic : B
Number of poles (total) : 4
Number of protected poles : 2
Rated current (A) : 16
Rated voltage (V) : 230
Rated insulation voltage Ui (V) : 440
Rated impulse withstand voltage Uimp (kV) : 4
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V (kA) : 6
Voltage-type : AC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V (kA) : 6
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V (kA) : 0
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V (kA) : 0
Frequency (Hz) : 50 Hz to 50 Hz
Current limiting class : 3
Flush-mounted installation : No
Concurrently switching neutral conductor : Yes
Over voltage category : 2
Pollution degree : 2
Additional equipment possible : Yes
Width in number of modular spacings : 2
Degree of protection (IP) : IP20
Ambient temperature during operating (°C) : -25 °C to 55 °C
Connectable conductor cross section multi-wired (mm²) : 1 mm² to 25 mm²
Connectable conductor cross section solid-core (mm²) : 1 mm² to 25 mm²
Explosion-proof : No
