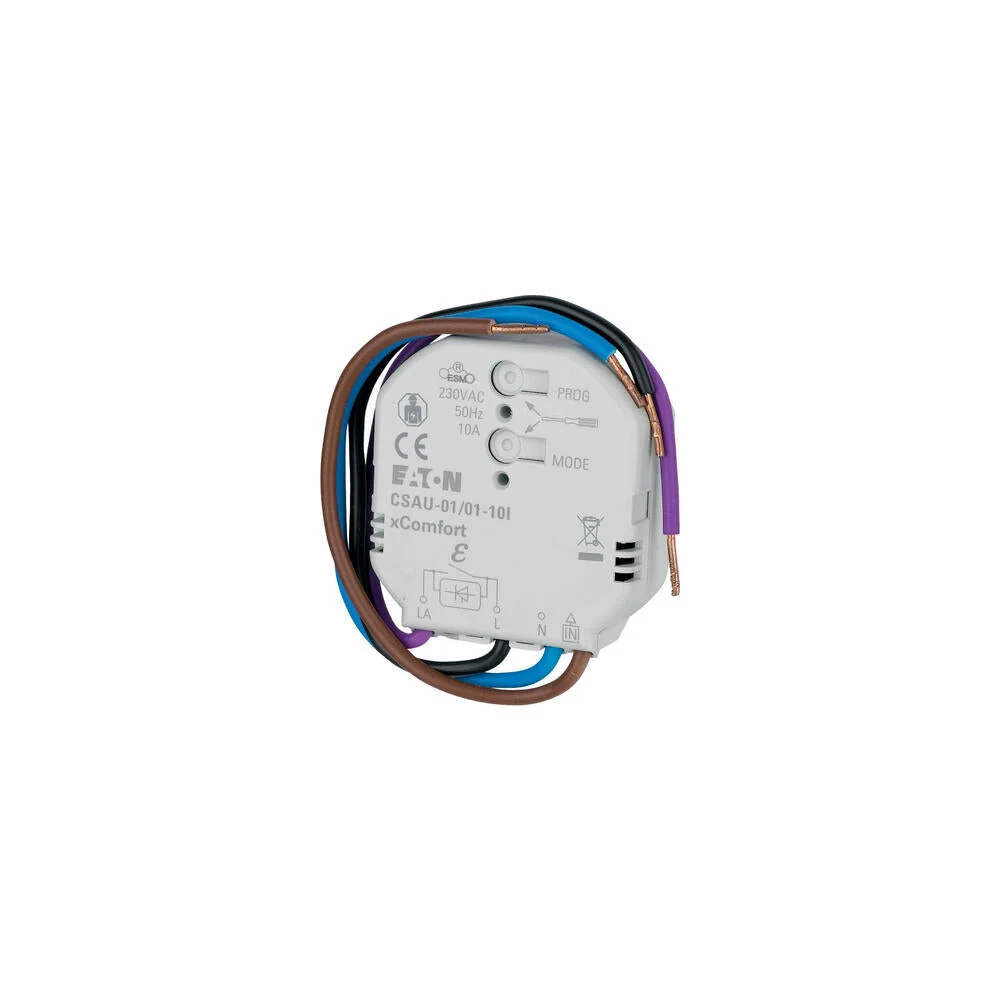

Small design Switching Actuator 230VAC/10A with local 230Vac input. It’s easy to use with existing wall switches, control lights in stairways and hallways, and directly switch lights with motion sensors and twilight switches.
Its small design is suitable for installation behind switches, retractive switches, motion sensors, wall sockets or in junction boxes. It is suitable for high switching performance to manage a variety of loads such as lighting, ventilation, heating, etc.
Like a standard Binary Input Device, the local input can also be assigned to other devices to send switching signals.
Specifications
Bus system KNX : No
Bus system KNX radio : No
Bus system radio frequent : Yes
Bus system LON : No
Bus system Powernet : No
Other bus systems : xComfort
Radio frequent bidirectional : Yes
Mounting method : Flush mounted (plaster)
Width in number of modular spacings : 3
Local operation/hand operation : Yes
With LED indication : Yes
Number of digital inputs : 1
Max. switching power (W) : 2300
Max. switching power LED (W) : 0
Output power (W) : 2300
Suitable for C-load : Yes
Max. number of switching contacts : 1
Max. switching current (A) : 10
Rated current (A) : 10
Rated operating voltage (V) : 230 V to 230 V
Different phases connectable : No
With bus connection : Yes
Bus module detachable : Yes
Min. depth of built-in installation box (mm) : 18
Modular expandability : No
Degree of protection (IP) : IP20
