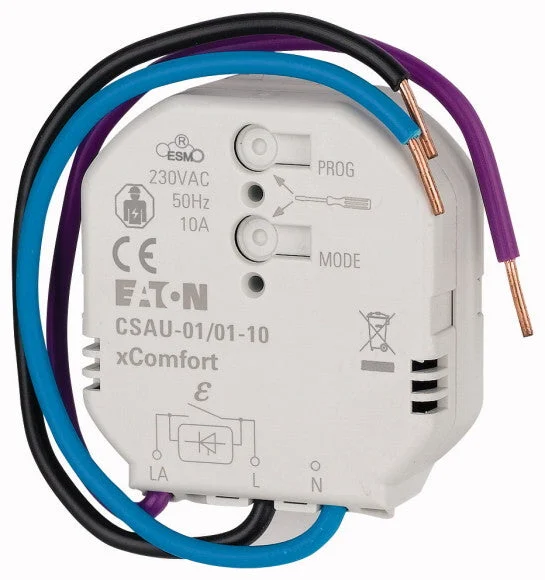

EATON INDUSTRIES Switching Actuator Bus System – 172937

Eaton Industries switching actuator bus system, flush-mounted, C-load, max. Number of switching outputs 1, other bus systems xComfort, operating voltage (measurement voltage) 230V, degree of protection (IP) IP20, width in module units 3, bus connection incl., bus module detachable, bus system radio frequency.

Specifications

Bus system KNX : No
Bus system KNX radio : No
Bus system radio frequent : Yes
Bus system LON : No
Bus system Powernet : No
Other bus systems : xComfort
Radio frequent bidirectional : Yes
Mounting method : Flush mounted (plaster)
Width in number of modular spacings : 3
Local operation/hand operation : Yes
With LED indication : Yes
Number of digital inputs : 0
Max. switching power (W) : 2300
Max. switching power LED (W) : 0
Output power (W) : 2300
Suitable for C-load : Yes
Max. number of switching contacts : 1
Max. switching current (A) : 10
Rated current (A) : 10
Rated operating voltage (V) : 230 V to 230 V
Different phases connectable : No
With bus connection : Yes
Bus module detachable : Yes
Min. depth of built-in installation box (mm) : 18
Modular expandability : No
Degree of protection (IP) : IP20
