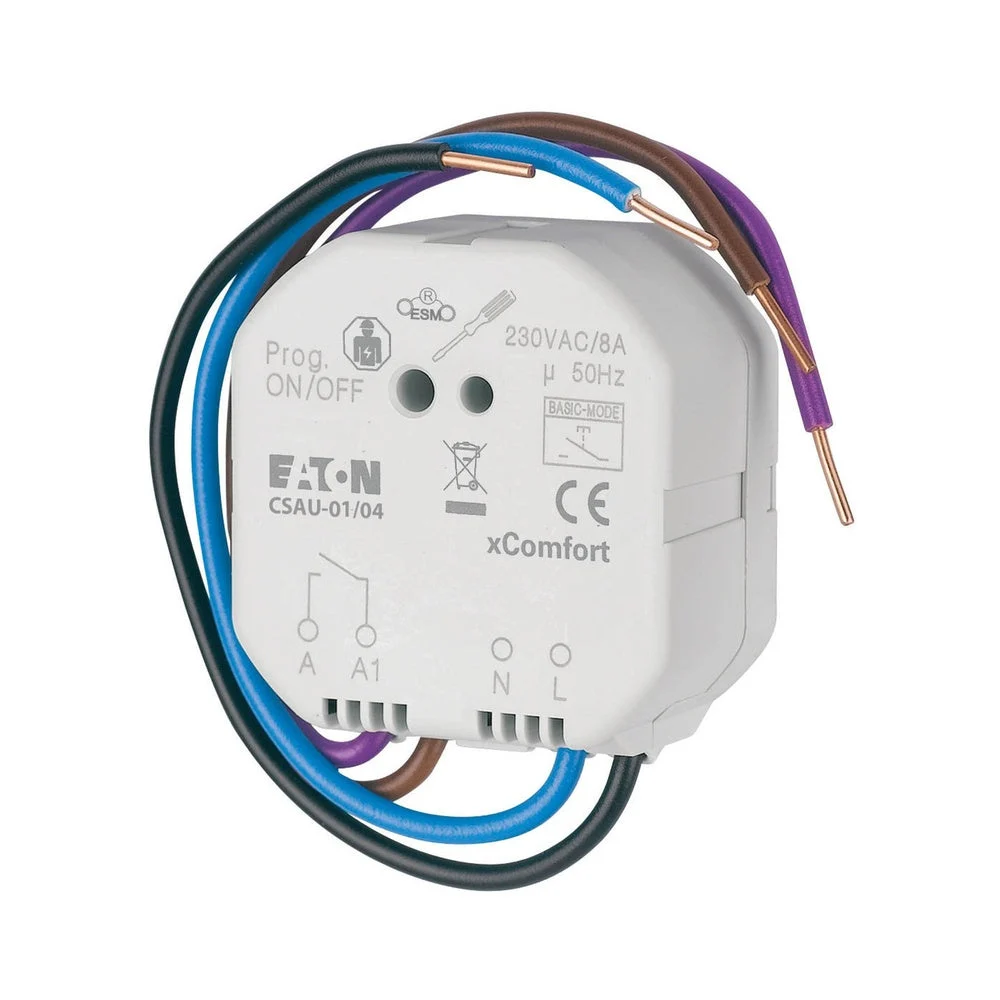

EATON INDUSTRIES Switching Actuator Bus System – 121080

Eaton Industries switching actuator bus system, flush-mounted, max. Number of switching outputs 1, other bus systems xComfort, degree of protection (IP) IP20, width in module units 3, bus connection incl., bus module removable, bus system radio frequency, manual operation, max. Switching current 8A.

Specifications

Bus system KNX : No
Bus system KNX radio : No
Bus system radio frequent : Yes
Bus system LON : No
Bus system Powernet : No
Other bus systems : xComfort
Radio frequent bidirectional : Yes
Mounting method : Flush mounted (plaster)
Width in number of modular spacings : 3
Local operation/hand operation : Yes
With LED indication : No
Number of digital inputs : 0
Max. switching power (W) : 1840
Max. switching power LED (W) : 0
Output power (W) : 1840
Suitable for C-load : No
Max. number of switching contacts : 1
Max. switching current (A) : 8
Rated current (A) : 0
Rated operating voltage (V) : 0 V to 0 V
Different phases connectable : No
With bus connection : Yes
Bus module detachable : Yes
Min. depth of built-in installation box (mm) : 26
Modular expandability : No
Degree of protection (IP) : IP20
