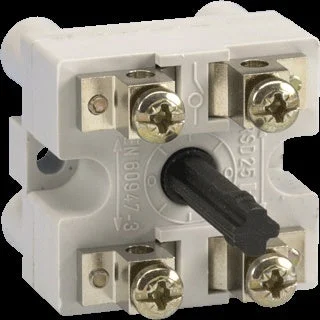

Eaton Industries RSD load breaker, 1 switch, max. Rated operating voltage Ue at A 230V, operating voltage (measurement voltage) 0 – 230V, rated continuous current Iu 25A, rated continuous current, AC-21, 400 V 25A, conditional rated short-circuit current 30kA, 2 poles, device construction form flush-mounted device fixed flush.
Specifications
Number of switches : 1
Max. rated operation voltage Ue AC (V) : 230
Rated operating voltage (V) : 230 V to 230 V
Rated permanent current Iu (A) : 25
Rated permanent current at AC-21, 400 V (A) : 25
Conditioned rated short-circuit current Iq (kA) : 30
Number of poles : 2
Number of auxiliary contacts as normally closed contact : 0
Number of auxiliary contacts as normally open contact : 0
Number of auxiliary contacts as change-over contact : 0
Device construction : Built-in device fixed built-in technique
Suitable for distribution board installation : Yes
Color control element : Other
Type of control element : Other
Type of electrical connection of main circuit : Other
Degree of protection (IP), front side : Other
Degree of protection (NEMA) : Other
