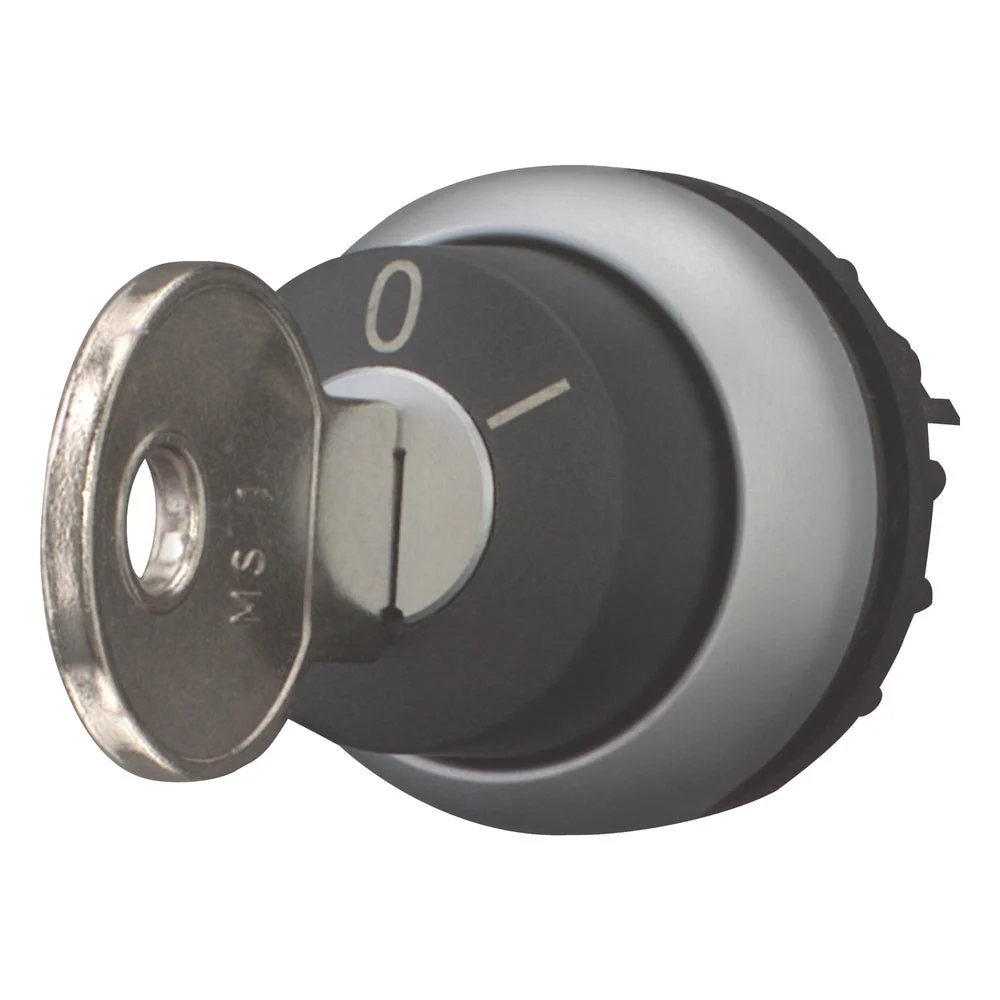

EATON INDUSTRIES RMQ-Titan Selector Switch Front Element – 216887

This round key switch from Eaton Moeller’s RMQ-Titan series has 2 positions. Operating this black switch is by using a key. Furthermore, the switch has a fixed function, so the switch remains fixed after switching. The front side of the switch has a chrome front ring and an IP66 protection rating. The hole diameter of the switch is 22.5mm.

Specifications

Number of switch positions : 2
Type of control element : Key
Suitable for illumination : No
Color control element : Black
Color indicator light cap : Other
Construction type lens : Round
Hole diameter (mm) : 22.5
Width opening (mm) : 0
Height opening (mm) : 0
Switching function latching : Yes
Spring-return : No
With front ring : Yes
Material front ring : Plastic
Color front ring : Titanium
Degree of protection (IP), front side : IP66
Degree of protection (NEMA) : 4X, 13
