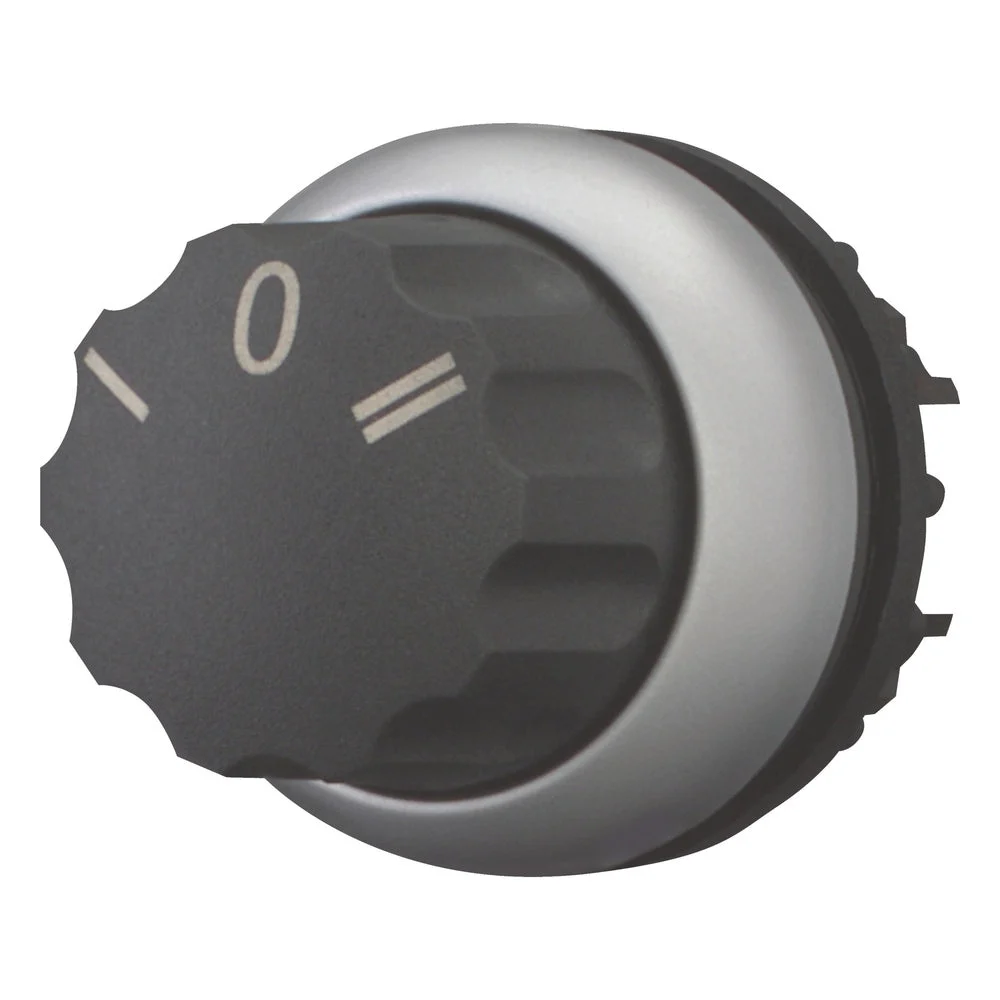

This black selector switch from Eaton Moeller’s RMQ-Titan series has 3 positions which can be operated with a black control element (rotary handle). By the way, the control element also features the following symbols: l-O-ll. Furthermore, the round switch has a spring-back function, which causes the rotary handle to spring back after shifting. The front side has a chrome front ring with a front diameter of 29.5mm and an IP66 protection rating. The hole diameter of the switch is 22.5mm.
Specifications
Number of switch positions : 3
Type of control element : Turn button
Suitable for illumination : No
Color control element : Black
Color indicator light cap : Other
Construction type lens : Round
Hole diameter (mm) : 22.5
Width opening (mm) : 0
Height opening (mm) : 0
Switching function latching : No
Spring-return : Yes
With front ring : Yes
Material front ring : Plastic
Color front ring : Titanium
Degree of protection (IP), front side : IP66
Degree of protection (NEMA) : 4X, 13
