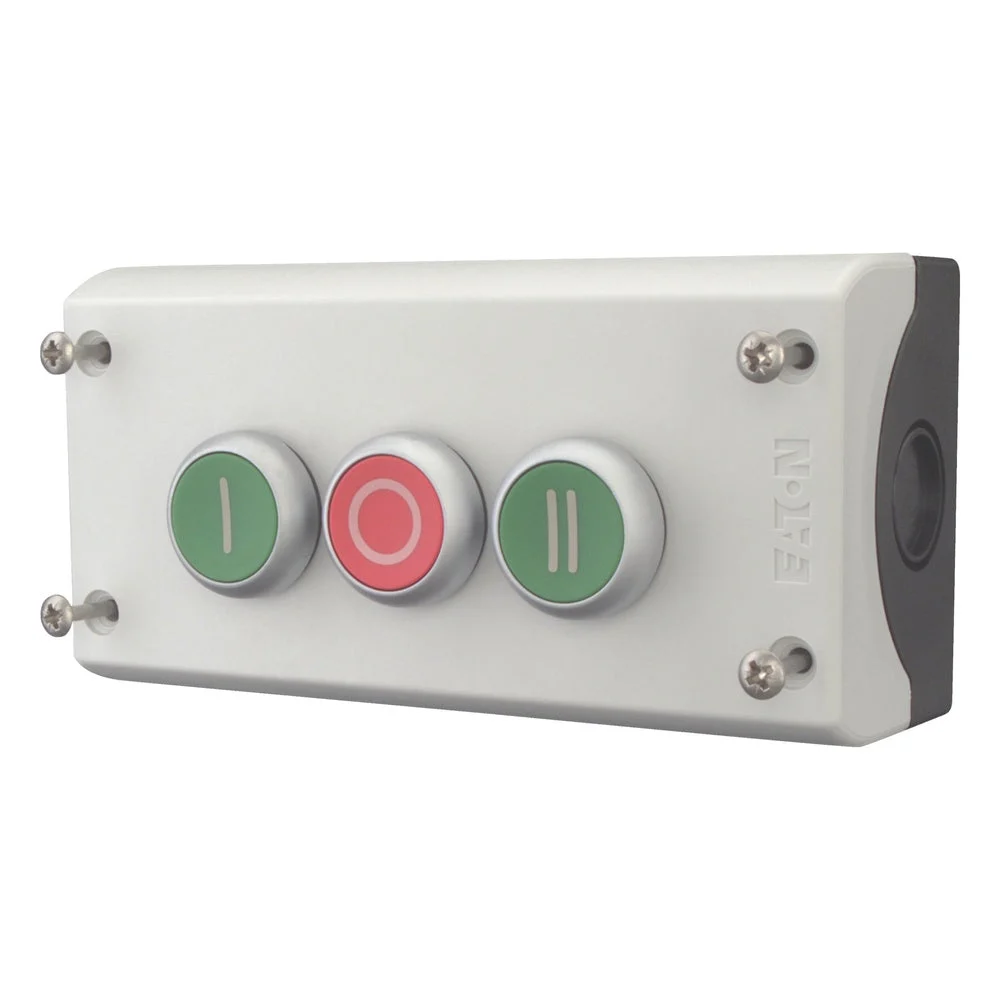

This complete pushbutton box from Eaton Moeller’s RMQ-Titan series has 3 make and 3 break contacts. With this push button box with two green and red push buttons, you have the possibility of 3 commands, namely: ‘start 1’, ‘stop’ and ‘start 2’. With the symbols ‘l’, ‘O’ and ‘ll’ as imprints, these commands are further confirmed. Furthermore, this push button box has a protection rating of IP67 and a fist bump diameter of 29.5mm.
Specifications
Number of command positions : 3
Number of push buttons : 3
Number of indicator lights : 0
Number of key switches : 0
Number of selector switches : 0
Number of mushroom-shaped push-buttons : 0
Suitable for emergency stop : No
Rated control supply voltage Us at AC 50HZ (V) : 115 V to 500 V
Rated control supply voltage Us at AC 60HZ (V) : 115 V to 500 V
Rated control supply voltage Us at DC (V) : 24 V to 220 V
Color housing cover : Grey
Material : Plastic
Number of contacts as normally open contact : 2
Number of contacts as normally closed contact : 2
Number of contacts as change-over contact : 0
Degree of protection (IP) : IP67/IP69K
Degree of protection (NEMA) : 4X, 13
