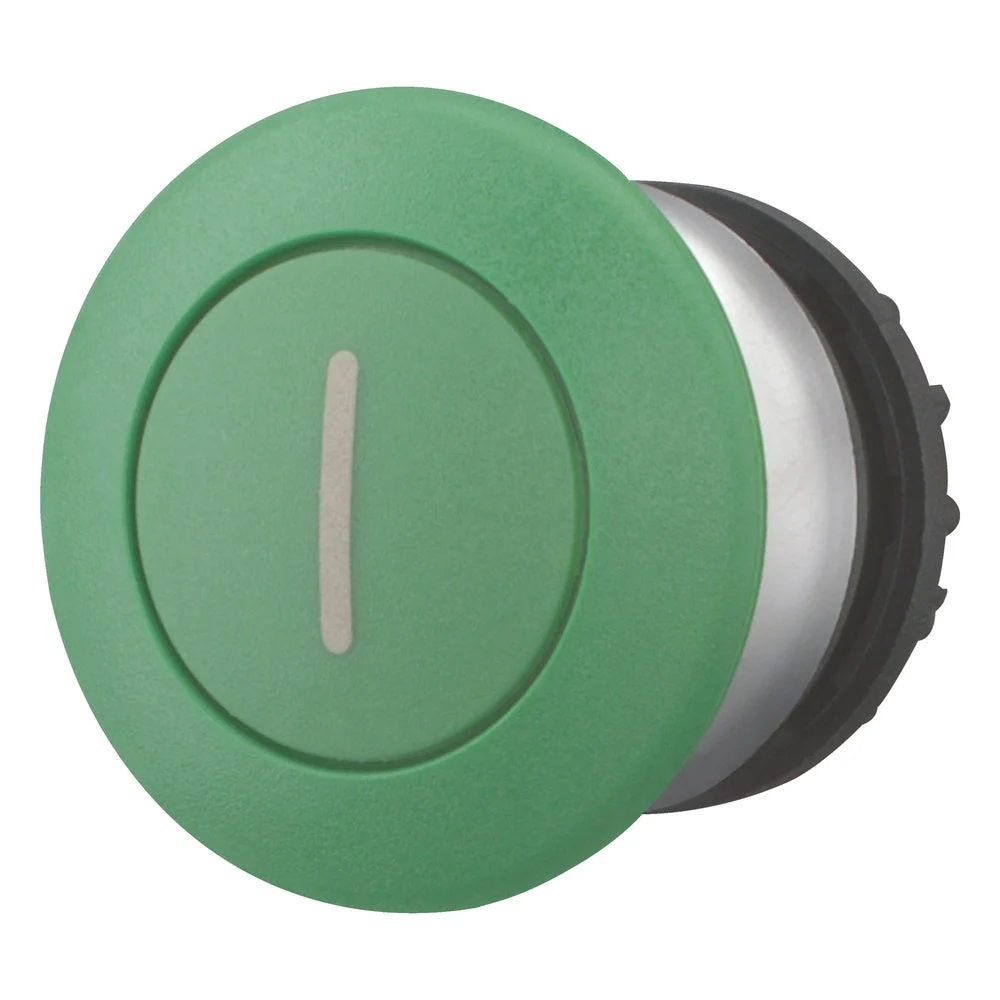

This mushroom push button from Eaton Moeller’s RMQ-Titan series is a green round button with a chrome front ring. With this springback push button, you have the option of 1 command, which is “on. This is additionally indicated by the symbol: l. Furthermore, this push button has a protection rating of IP67 and a hole diameter of 22mm and a cap diameter of 36.5mm.
Specifications
Color button : Green
Construction type lens : Round
Diameter cap (mm) : 36.5
Hole diameter (mm) : 22.5
Width opening (mm) : 0
Height opening (mm) : 0
Degree of protection (IP) : IP67/IP69K
Degree of protection (NEMA) : 4X, 13
Type of button : Flat
Suitable for illumination : No
With lighting : No
Supply voltage lamp (V) : 0
Switching function latching : No
Spring-return : Yes
With front ring : Yes
Material front ring : Plastic
Color front ring : Chrome
Suitable for emergency stop : No
Unlocking method : None
