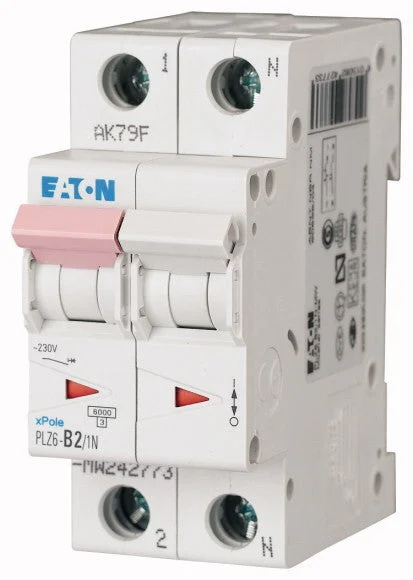

Eaton Moeller series xPole – PLZ6/M MCB. PLZ6, 1-pole+N, tripping characteristic: B, rated current In: 2 A, rated switching capacity IEC/EN 60898-1: 6 kA.
Specifications
Release characteristic : B
Number of poles (total) : 2
Number of protected poles : 1
Rated insulation voltage Ui (V) : 440
Voltage-type : AC
Current limiting class : 3
Flush-mounted installation : No
Concurrently switching neutral conductor : Yes
Additional equipment possible : Yes
Width in number of modular spacings : 2
Connectable conductor cross section multi-wired (mm²) : 1 mm² to 25 mm²
Connectable conductor cross section solid-core (mm²) : 1 mm² to 25 mm²
