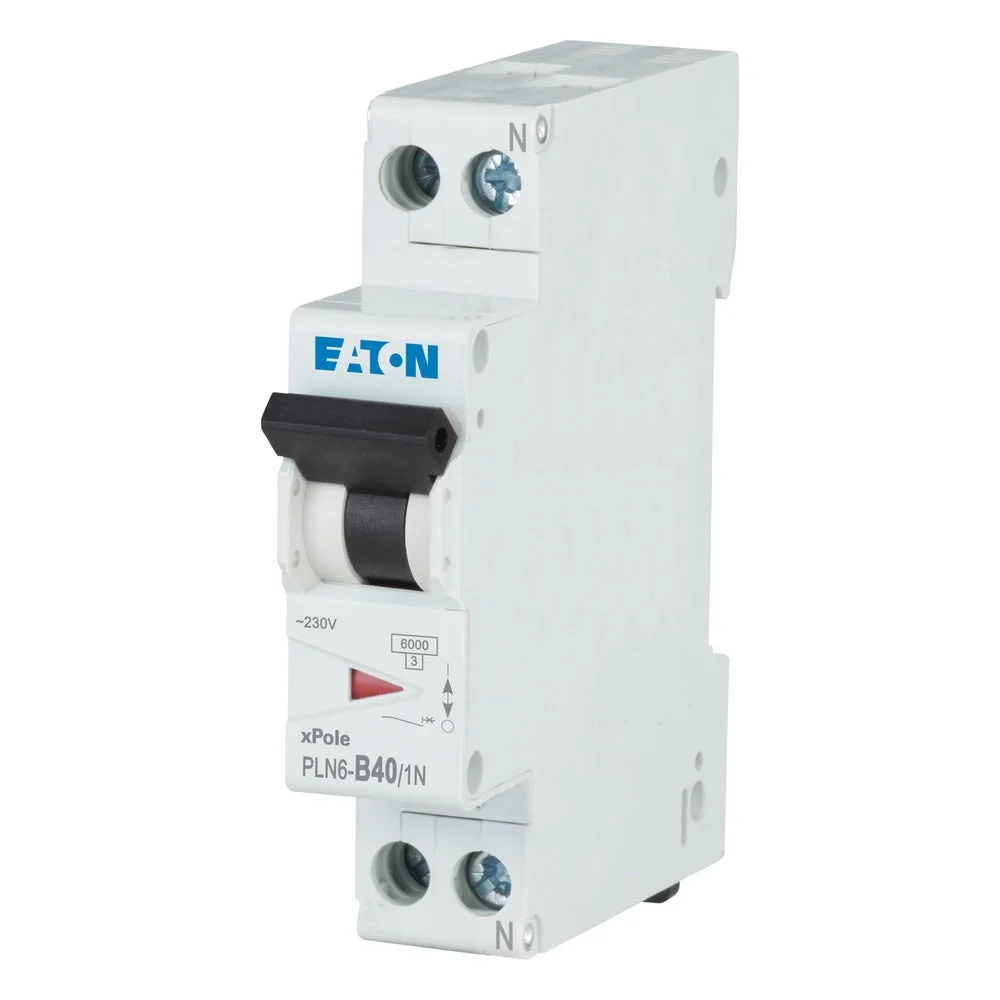

EATON INDUSTRIES PLN Circuit Breaker – 263168

Eaton Moeller series xPole – PLN6 MCB. Miniature circuit breaker (MCB), 40 A, 1p+N, characteristic: B, MW.

Specifications

Built-in depth (mm) : 70.5
Release characteristic : B
Number of poles (total) : 2
Number of protected poles : 1
Rated current (A) : 40
Rated voltage (V) : 230
Rated insulation voltage Ui (V) : 440
Rated impulse withstand voltage Uimp (kV) : 4
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V (kA) : 6
Voltage-type : AC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V (kA) : 6
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V (kA) : 0
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V (kA) : 0
Frequency (Hz) : 50 Hz to 60 Hz
Current limiting class : 3
Flush-mounted installation : No
Concurrently switching neutral conductor : Yes
Over voltage category : 3
Pollution degree : 2
Additional equipment possible : Yes
Width in number of modular spacings : 1
Degree of protection (IP) : IP20
Ambient temperature during operating (°C) : -25 °C to 75 °C
Connectable conductor cross section multi-wired (mm²) : 1 mm² to 16 mm²
Connectable conductor cross section solid-core (mm²) : 1 mm² to 16 mm²
Explosion-proof : No
