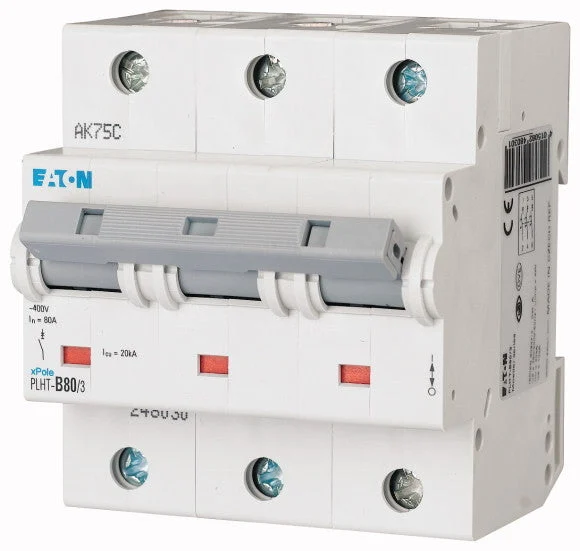

Eaton Industries PLH T circuit breaker, tripping characteristic C, nom. (measuring) current 80A, voltage type AC, 3 poles (total), width in module units 4.5, secondary device possible, connectable conductor cross-section duck 2.5 – 50mm², 3 protected poles, nom. (measuring) voltage 400V.
Specifications
Release characteristic : C
Number of poles (total) : 3
Number of protected poles : 3
Rated insulation voltage Ui (V) : 440
Voltage-type : AC
Current limiting class : 3
Flush-mounted installation : No
Concurrently switching neutral conductor : No
Additional equipment possible : Yes
Width in number of modular spacings : 4.5
Connectable conductor cross section multi-wired (mm²) : 2.5 mm² to 50 mm²
Connectable conductor cross section solid-core (mm²) : 2.5 mm² to 50 mm²
