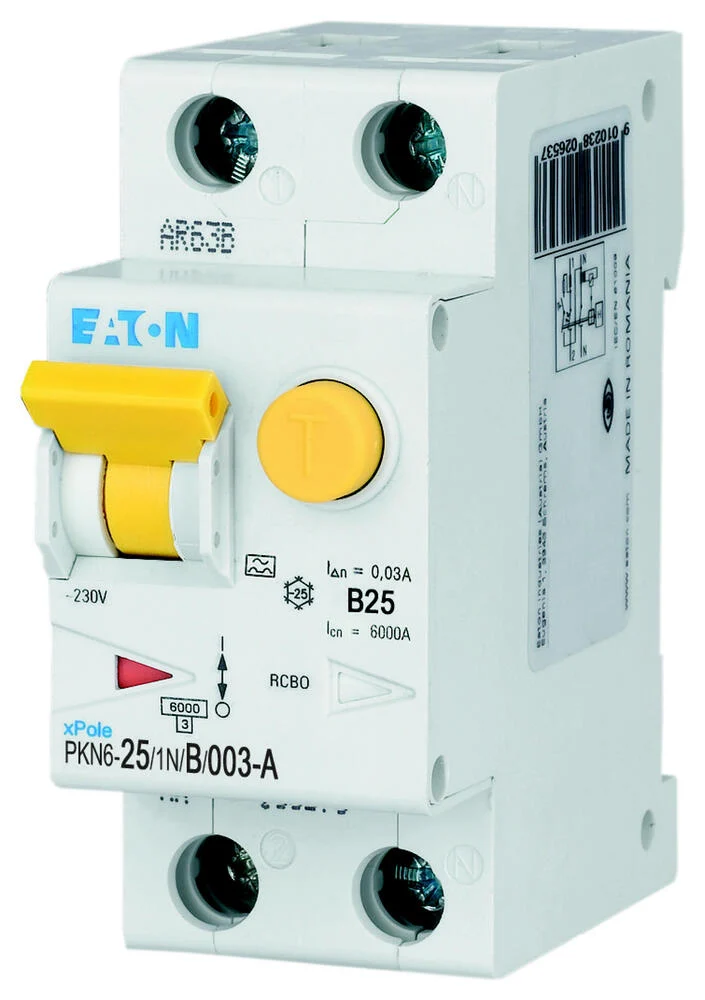

This earth leakage circuit breaker from Eaton Moeller’s PKN6 series has a double comfort clamp lift/frame top and bottom. Free choice comb rail position above or below. The color of switch lever indicates the rated current. Contact position indicator red – green. This PKN6 ground fault circuit breaker is limited current surge resistant 250A and plus current sensitive. This Type A of the Eaton Moeller PKN6 ground fault circuit breakers protects DC fault currents at special non-flattened shapes.
Specifications
Number of poles (total) : 2
Number of protected poles : 1
Rated voltage (V) : 230
Rated insulation voltage Ui (V) : 440
Rated impulse withstand voltage Uimp (kV) : 4
Rated current (A) : 25
Rated fault current (A) : 0.03
Leakage current type : A
Current limiting class : 3
Rated short-circuit breaking capacity according to EN 61009 (kA) : 6
Rated short-circuit breaking capacity according to IEC 60947-2 (kA) : 0
Rated short-circuit breaking capacity Icn according to EN 61009-1 (kA) : 6
Disconnection characteristic : Undelayed
Surge current capacity (kA) : 0.25
Voltage-type : AC
Frequency : 50 Hz
Release characteristic : B
Concurrently switching neutral conductor : Yes
With interlocking device : No
Over voltage category : 3
Pollution degree : 2
Ambient temperature during operating (°C) : -25 °C to 40 °C
Width in number of modular spacings : 2
Built-in depth (mm) : 60
Flush-mounted installation : No
Anti-nuisance tripping version : No
Degree of protection (IP) : IP20
Connectable conductor cross section solid-core (mm²) : 1 mm² to 25 mm²
Connectable conductor cross section multi-wired (mm²) : 1 mm² to 25 mm²
