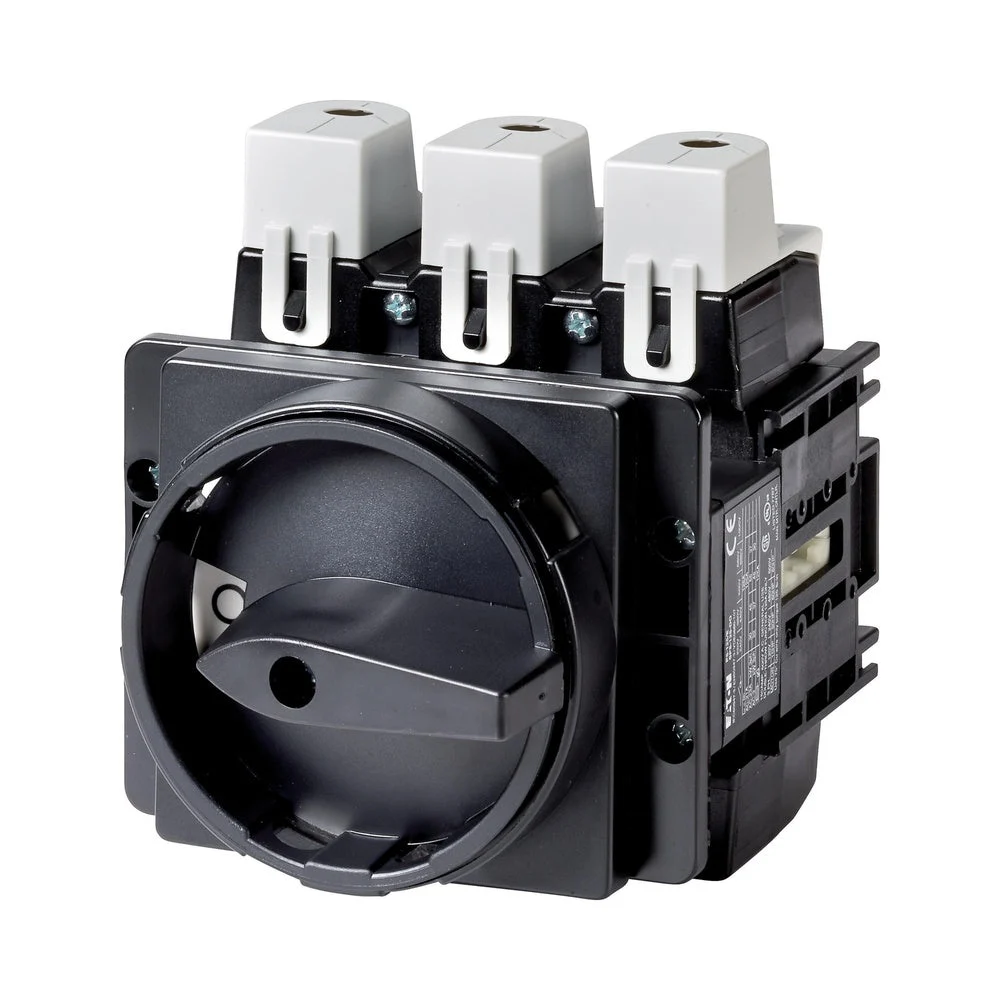

This 4-pole load breaker from Eaton Moeller’s P Series can also be used as a work and main switch. The rated continuous current is 125A. Furthermore, this Eaton Moeller load breaker has a rated capacity at AC-23 of 45kW and at AC-3 of 37kW. In addition, the operating voltage (measurement voltage) is 690V. A major advantage of this load switch is the ability to lock it.
Specifications
Version as main switch : Yes
Version as maintenance-/service switch : Yes
Version as safety switch : No
Version as emergency stop installation : No
Version as reversing switch : No
Number of switches : 1
Max. rated operation voltage Ue AC (V) : 690
Rated operating voltage (V) : 690 V to 690 V
Rated permanent current Iu (A) : 125
Rated permanent current at AC-23, 400 V (A) : 125
Rated permanent current at AC-21, 400 V (A) : 125
Rated operation power at AC-3, 400 V (kW) : 37
Rated short-time withstand current lcw (kA) : 2.5
Rated operation power at AC-23, 400 V (kW) : 45
Switching power at 400 V (kW) : 45
Conditioned rated short-circuit current Iq (kA) : 30
Number of poles : 4
Number of auxiliary contacts as normally closed contact : 0
Number of auxiliary contacts as normally open contact : 0
Number of auxiliary contacts as change-over contact : 0
Motor drive optional : No
Motor drive integrated : No
Voltage release optional : No
Device construction : Built-in device fixed built-in technique
Suitable for floor mounting : No
Suitable for front mounting 4-hole : Yes
Suitable for front mounting center : No
Suitable for distribution board installation : No
Suitable for intermediate mounting : No
Color control element : Black
Type of control element : Door coupling rotary drive
Interlockable : Yes
Type of electrical connection of main circuit : Frame clamp
Degree of protection (IP), front side : IP65
Degree of protection (NEMA) : 12
