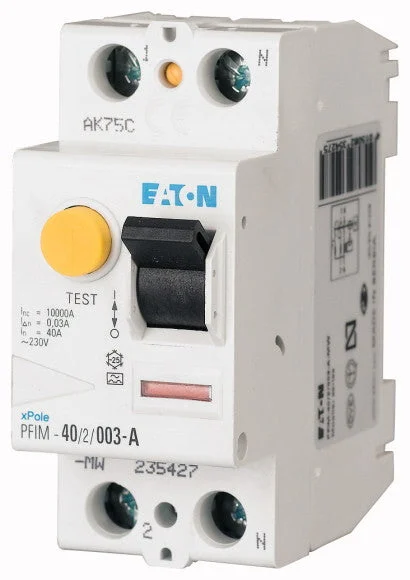

EATON INDUSTRIES P Ground fault Circuit Interrupter – 274042

Eaton Moeller PFIM earth leakage circuit breaker PFIM-40/2/03-A. Eaton Moeller, part of Eaton Industries, offers a complete range of compact earth leakage circuit breakers for a wide range of applications with the PFIM type. The wide variety of Eaton Moeller PFIM earth leakage circuit breakers provides a wide range of available rated (fault) currents. With these earth leakage circuit breakers, you get a safe and reliable solution for in homes as well as utilities.

Specifications

Number of poles : 2
Rated voltage (V) : 230
Rated current (A) : 40
Rated fault current (A) : 0.3
Rated insulation voltage Ui (V) : 440
Rated impulse withstand voltage Uimp (kV) : 4
Mounting method : DIN rail
Leakage current type : A
Selective protection : No
Short-time delayed tripping : No
Short-circuit breaking capacity (Icw) (kA) : 10
Surge current capacity (kA) : 0.25
Voltage-type : AC
With interlocking device : Yes
Frequency : 50 Hz
Additional equipment possible : Yes
Degree of protection (IP) : IP20
Width in number of modular spacings : 2
Built-in depth (mm) : 70.5
Ambient temperature during operating (°C) : -25 °C to 60 °C
Pollution degree : 2
Connectable conductor cross section multi-wired (mm²) : 1.5 mm² to 16 mm²
Connectable conductor cross section solid-core (mm²) : 1.5 mm² to 35 mm²
Explosion-proof : No
