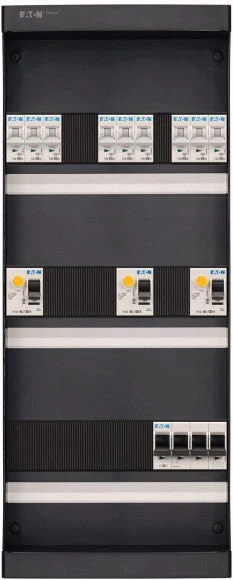

This group box from the Medusa series of Eaton Holec is a 1-phase groups which features 9 groups, 3 earth leakage switches and a main switch. The easily removable mounting frame of the Medusa group box feature integrated DIN profiles. The removability of the mounting frame allows the components to be disconnected outside the cabinet. The Eaton Holec Medusa group box is available in several variants.
Specifications
Mounting method : Surface mounted (plaster)
Number of phases : 1
Protection : Miniature- / earth leakage circuit breaker
Total number of groups : 9
Number of direct groups : 0
Number of light groups : 9
Number of groups behind earth leakage switch : 9
Number of earth leakage circuit breakers : 0
Number of earth leakage switches 30 mA : 3
Number of earth leakage switches 300 mA : 0
Number of arc fault detection devices AFDD : 0
Protection main switch : No
Number of poles main switch : 4
Main switch rated current (A) : 40
Protection incoming RCD : No
Protection high integrity : No
Protection split load : No
Protection dual RCD : No
Number of outgoing ways : 9
Suitable for data : No
Cooker group : None
Cooker group suitable as power current group : No
With socket outlet : No
With bell transformer : No
Over voltage protection : No
With meter : No
Material : Plastic
Degree of protection (IP) : IP3X
Height (mm) : 186
Width (mm) : 234
Width in number of modular spacings : 12
Depth (mm) : 572
Built-in depth (mm) : 0 mm to 0 mm
Extension possible : Yes
With transparent cover : No
Lockable : No
