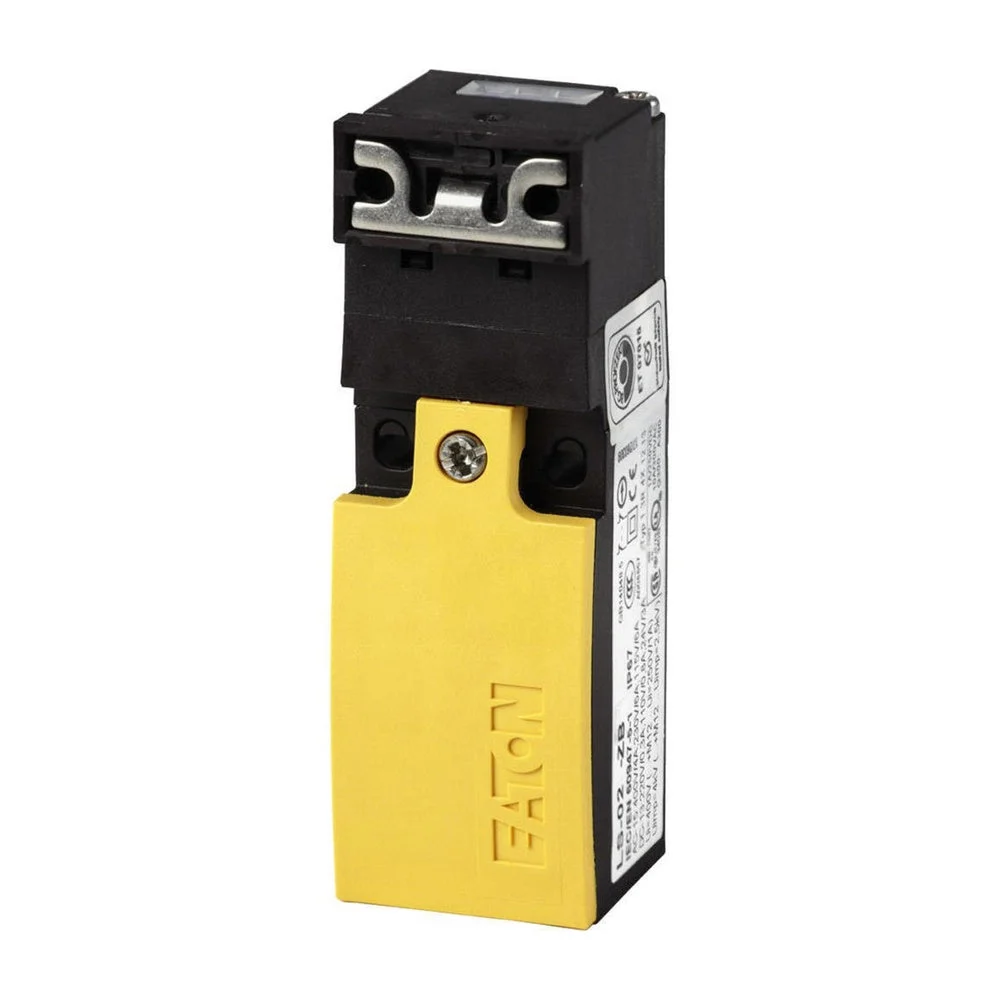

EATON INDUSTRIES LS Limit Switch – 106819

Eaton Industries LS limit switch, control element design other, housing plastic, protection rating (IP) IP66, switching function no torque switching, electrical connection design cable entry metric, 1 break contact, suitable for safety function, 1 make contact.

Specifications

Width sensor (mm) : 30
Diameter sensor (mm) : 0
Height of sensor (mm) : 96
Length of sensor (mm) : 33.35
Rated operation current Ie at AC-15, 24 V (A) : 10
Rated operation current Ie at AC-15, 125 V (A) : 6
Rated operation current Ie at AC-15, 230 V (A) : 6
Rated operation current Ie at DC-13, 24 V (A) : 3
Rated operation current Ie at DC-13, 125 V (A) : 0.8
Rated operation current Ie at DC-13, 230 V (A) : 0.3
Switching function : Slow-action switch
Switching function latching : No
Output electronic : No
Forced opening : Yes
Number of safety auxiliary contacts : 0
Number of contacts as normally closed contact : 1
Number of contacts as normally open contact : 1
Number of contacts as change-over contact : 0
Type of interface : None
Type of interface for safety communication : None
Construction type housing : Cuboid
Material : Plastic
Coating housing : Other
Type of control element : Other
Alignment of the control element : Other
Electrical connection : Cable entry metrical
Status indication : No
Suitable for safety functions : Yes
Explosion safety gas : None
Explosion safety dust : None
Ambient temperature during operating (°C) : -25 °C to 70 °C
Degree of protection (IP) : IP66
Degree of protection (NEMA) : Other
