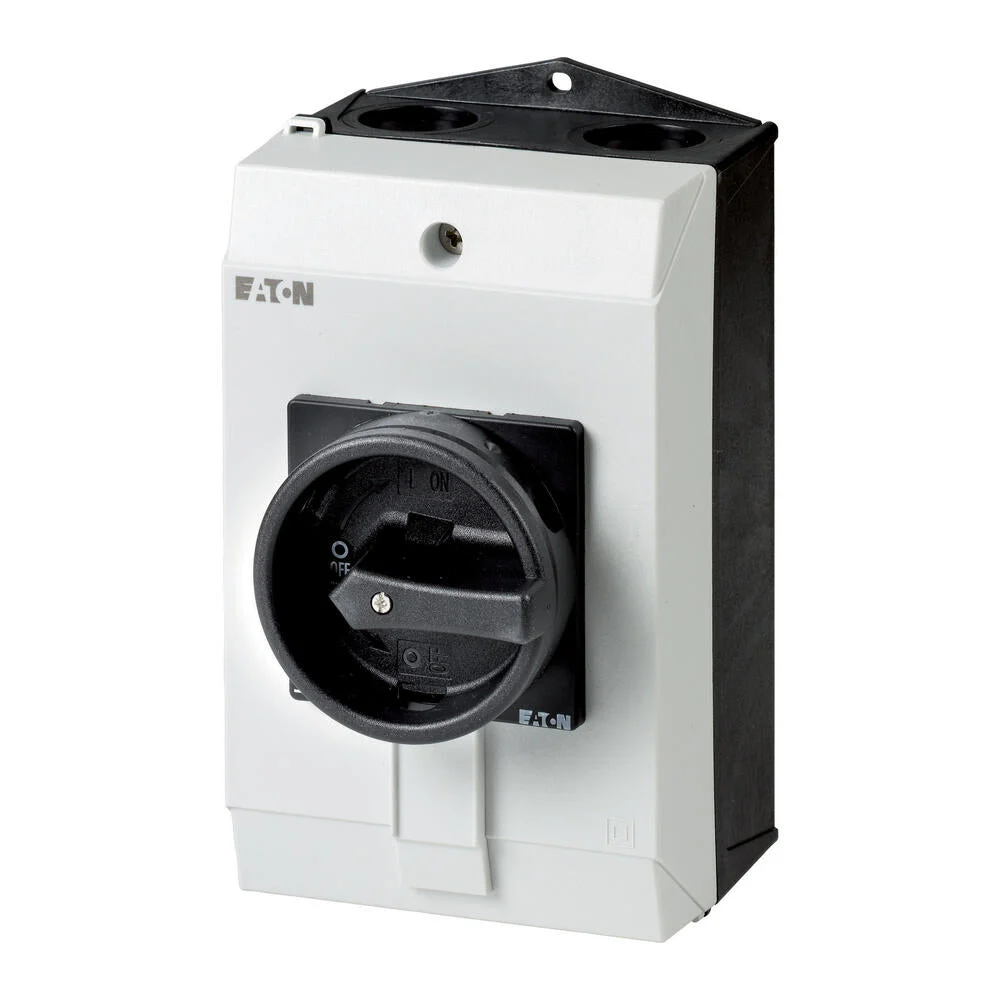

EATON INDUSTRIES Load Breaker – 207317

Eaton Moeller series P1 Main switch, P1, 32 A, surface mounting, 3 pole + N, STOP function, With black rotary handle and locking ring, Lockable in the 0 (Off) position.

Specifications

Version as main switch : Yes
Version as maintenance-/service switch : Yes
Version as safety switch : No
Version as emergency stop installation : No
Version as reversing switch : No
Number of switches : 1
Max. rated operation voltage Ue AC (V) : 690
Rated operating voltage (V) : 690 V to 690 V
Rated permanent current Iu (A) : 32
Rated permanent current at AC-23, 400 V (A) : 32
Rated permanent current at AC-21, 400 V (A) : 32
Rated operation power at AC-3, 400 V (kW) : 13
Rated short-time withstand current lcw (kA) : 0.64
Rated operation power at AC-23, 400 V (kW) : 15
Switching power at 400 V (kW) : 15
Conditioned rated short-circuit current Iq (kA) : 80
Number of poles : 4
Number of auxiliary contacts as normally closed contact : 0
Number of auxiliary contacts as normally open contact : 0
Number of auxiliary contacts as change-over contact : 0
Motor drive optional : No
Motor drive integrated : No
Voltage release optional : No
Device construction : Complete device in housing
Suitable for floor mounting : Yes
Suitable for front mounting 4-hole : No
Suitable for front mounting center : No
Suitable for distribution board installation : No
Suitable for intermediate mounting : No
Color control element : Black
Type of control element : Door coupling rotary drive
Interlockable : Yes
Type of electrical connection of main circuit : Screw connection
Degree of protection (IP), front side : IP65
Degree of protection (NEMA) : 12
