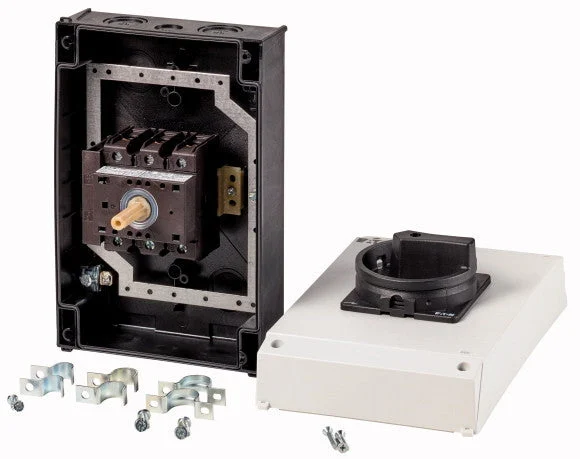

Main Switch Product Range: This range includes the main switch and maintenance switch. The part group has the reference P3. It includes a stop function. The product comes with a black rotary handle and a locking ring. Note that the assembly sheet screen is included. The user can fit the auxiliary contact or neutral conductor according to their needs.
The product is 3 pole and can be locked in the 0 (Off) position. It has a degree of protection of IP65 and is designed for surface mounting. The motor rating is AC-23A, 50 – 60 Hz 400 V: P = 30 kW. The rated uninterrupted current is Iu = 63 A.
This product follows the standards of:
- IEC/EN 60947
- VDE 0660
- IEC/EN 60204
It is a switch-disconnector according to IEC/EN 60947-3.
Specifications
Version as main switch : Yes
Version as maintenance-/service switch : Yes
Version as safety switch : No
Version as emergency stop installation : No
Version as reversing switch : No
Number of switches : 1
Max. rated operation voltage Ue AC (V) : 690
Rated operating voltage (V) : 690 V to 690 V
Rated permanent current Iu (A) : 63
Rated permanent current at AC-23, 400 V (A) : 63
Rated permanent current at AC-21, 400 V (A) : 63
Rated operation power at AC-3, 400 V (kW) : 30
Rated short-time withstand current lcw (kA) : 1.26
Rated operation power at AC-23, 400 V (kW) : 30
Switching power at 400 V (kW) : 30
Conditioned rated short-circuit current Iq (kA) : 100
Number of poles : 3
Number of auxiliary contacts as normally closed contact : 1
Number of auxiliary contacts as normally open contact : 1
Number of auxiliary contacts as change-over contact : 0
Motor drive optional : No
Motor drive integrated : No
Voltage release optional : No
Device construction : Complete device in housing
Suitable for floor mounting : Yes
Suitable for front mounting 4-hole : No
Suitable for front mounting center : No
Suitable for distribution board installation : No
Suitable for intermediate mounting : No
Color control element : Black
Type of control element : Door coupling rotary drive
Interlockable : Yes
Type of electrical connection of main circuit : Screw connection
Degree of protection (IP), front side : IP65
Degree of protection (NEMA) : 12
