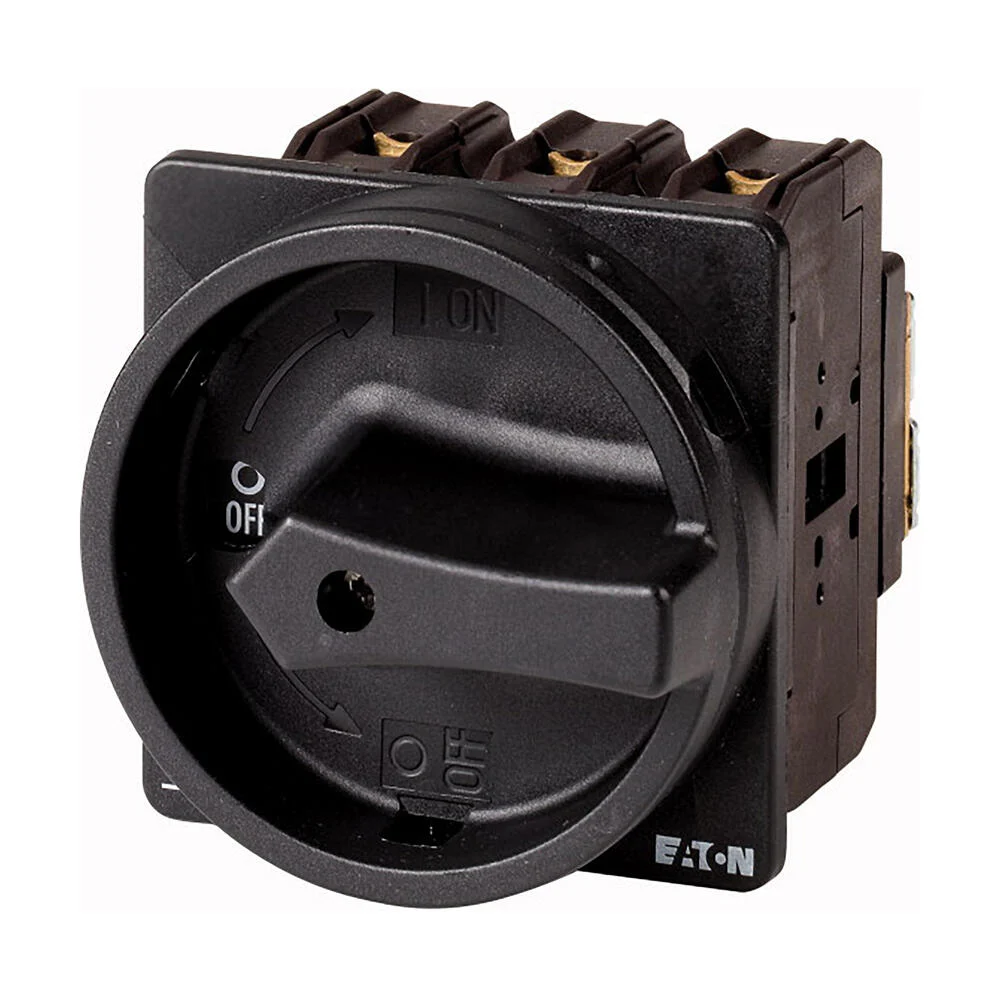

EATON INDUSTRIES Load Breaker – 069724

Eaton Eaton Moeller series P3 Main switch, P3, 63 A, flush mounting, 3 pole + N, 1 N/O, 1 N/C, STOP function, With black rotary handle and locking ring, Lockable in the 0 (Off) position.

Specifications

Version as main switch : Yes
Version as maintenance-/service switch : Yes
Version as safety switch : No
Version as emergency stop installation : No
Version as reversing switch : No
Number of switches : 1
Max. rated operation voltage Ue AC (V) : 690
Rated operating voltage (V) : 690 V to 690 V
Rated permanent current Iu (A) : 63
Rated permanent current at AC-23, 400 V (A) : 63
Rated permanent current at AC-21, 400 V (A) : 63
Rated operation power at AC-3, 400 V (kW) : 30
Rated short-time withstand current lcw (kA) : 1.26
Rated operation power at AC-23, 400 V (kW) : 30
Switching power at 400 V (kW) : 30
Conditioned rated short-circuit current Iq (kA) : 100
Number of poles : 4
Number of auxiliary contacts as normally closed contact : 1
Number of auxiliary contacts as normally open contact : 1
Number of auxiliary contacts as change-over contact : 0
Motor drive optional : No
Motor drive integrated : No
Voltage release optional : No
Device construction : Built-in device fixed built-in technique
Suitable for floor mounting : No
Suitable for front mounting 4-hole : Yes
Suitable for front mounting center : No
Suitable for distribution board installation : No
Suitable for intermediate mounting : No
Color control element : Black
Type of control element : Door coupling rotary drive
Interlockable : Yes
Type of electrical connection of main circuit : Screw connection
Degree of protection (IP), front side : IP65
Degree of protection (NEMA) : 1
