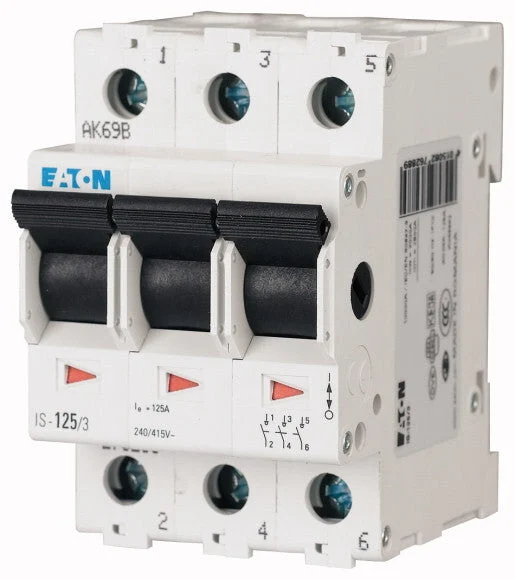

EATON INDUSTRIES IS Recessed Switch Modular – 276272

Eaton Industries IS recessed switch modular, nom. (measurement) current 40A, switching function other, 3 make contacts, 3 poles, 3 break contacts, degree of protection (IP) IP40, width in module units 3, mounting depth 69.5mm, cap (calotte) other, short-circuit resistance (Icw) 2kA, lamp type other.

Specifications

Switching function : Other
Number of contacts as normally open contact : 3
Number of contacts as normally closed contact : 3
Number of contacts as change-over contact : 0
Number of poles : 3
Rated current (A) : 40
Rated voltage (V) : 415
Min. rated voltage (V) : 240
Rated switching capacity (kA) : 12.5
Short-circuit breaking capacity (Icw) (kA) : 1
Voltage-type : AC
With signal lamp : No
Color calotte : Other
Lamp type : Other
Lamp socket : Other
Max. lamp power (W) : 0
Width in number of modular spacings : 3
Built-in depth (mm) : 69.5
Degree of protection (IP) : IP40
Imprint/indication : Symbol “arrows”
