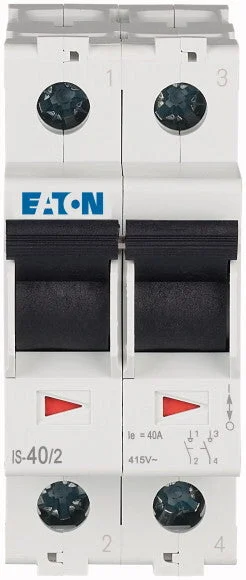

Eaton Industries IS main switch IS-40/2. Eaton Industries offers a comprehensive range of components for switching, control and signaling. Part of this is IS main switches. Eaton Industries IS main switches are available in several varieties. Eaton Industries IS main switch IS-40/2. This 2-pole IS main switch from Eaton Industries has a rated continuous current of 40A and a maximum rated voltage of 240V. In addition, the main switch has 2 make and 2 break contacts. The main load switch has a rocker arm as the control element (black).
Specifications
Switching function : Other
Number of contacts as normally open contact : 2
Number of contacts as normally closed contact : 2
Number of contacts as change-over contact : 0
Number of poles : 2
Rated current (A) : 40
Rated voltage (V) : 415
Min. rated voltage (V) : 240
Rated switching capacity (kA) : 12.5
Short-circuit breaking capacity (Icw) (kA) : 1
Voltage-type : AC
With signal lamp : No
Color calotte : Other
Lamp type : Other
Lamp socket : Other
Max. lamp power (W) : 0
Width in number of modular spacings : 2
Built-in depth (mm) : 69.5
Degree of protection (IP) : IP40
Imprint/indication : Symbol “arrows”
