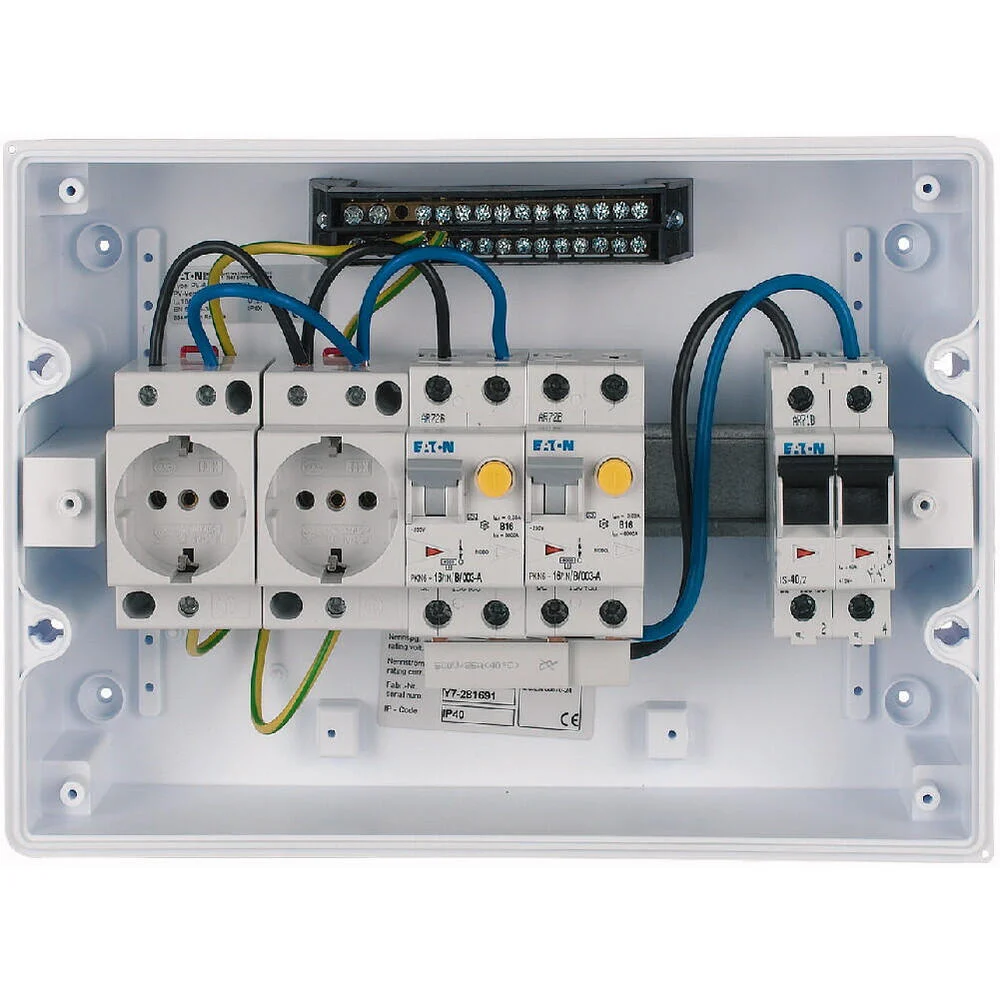

This PV distributor from Eaton Holec features two outlets, a main switch and two earth leakage circuit breakers (16A, B-car, 30mA) for protection. Further features of this 1-phase PV distributor are as follows: Pre-assembled sub-distributor fitted with sockets for washing machine and/or tumble dryer. Design verification according to EN 61439-3 by testing. For PV distributors with and without integrated earth leakage protection or galvanic isolation. IP 4X / IK 07; manufactured from high-grade ABS, 1-row, 12 modules.
Specifications
Mounting method : Surface mounted (plaster)
Number of phases : 1
Protection : Miniature- / earth leakage circuit breaker
Total number of groups : 2
Number of direct groups : 0
Number of light groups : 0
Number of groups behind earth leakage switch : 0
Number of earth leakage circuit breakers : 2
Number of earth leakage switches 30 mA : 0
Number of earth leakage switches 300 mA : 0
Number of arc fault detection devices AFDD : 0
Protection main switch : No
Number of poles main switch : 2
Main switch rated current (A) : 40
Protection incoming RCD : No
Protection high integrity : No
Protection split load : No
Protection dual RCD : No
Number of outgoing ways : 2
Suitable for data : No
Cooker group : None
Cooker group suitable as power current group : No
With socket outlet : Yes
With bell transformer : No
Over voltage protection : No
With meter : No
Material : Plastic
Degree of protection (IP) : IP40
Height (mm) : 212
Width (mm) : 303
Width in number of modular spacings : 12
Depth (mm) : 98
Built-in depth (mm) : 0 mm to 0 mm
Extension possible : No
With transparent cover : No
Lockable : No
