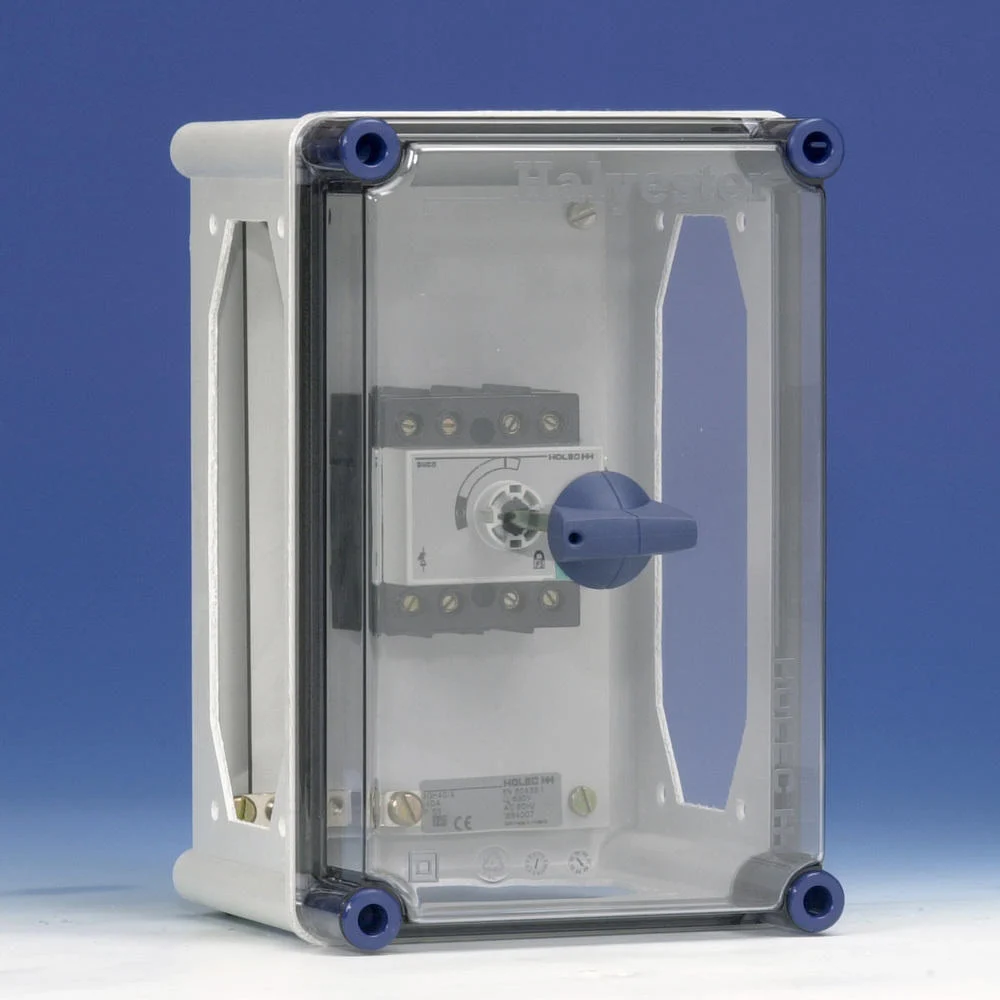

This Halyester SGH 63/4 power cabinet features a Duco load breaker and a rated current of 63 amps. The cabinet is further 4-pole, has a protection rating of IP56 and features 3 openings (see illustration). The dimensions of the Halyester power cabinet are 270 millimeters in height, 180 millimeters in width and 171 millimeters in depth.
Specifications
Number of poles : 4
Nominal current (A) : 63
Number of switches : 1
Material : Plastic
Degree of protection (IP) : IP56
Height (mm) : 270
Width (mm) : 180
Depth (mm) : 220
Extension possible : Yes
Positioning on rail system : Above
Model : With cover
Transparent cover/door : Yes
Operation mechanism behind cover/door : No
