EATON INDUSTRIES Halyester Switch Cabinet – 1864005

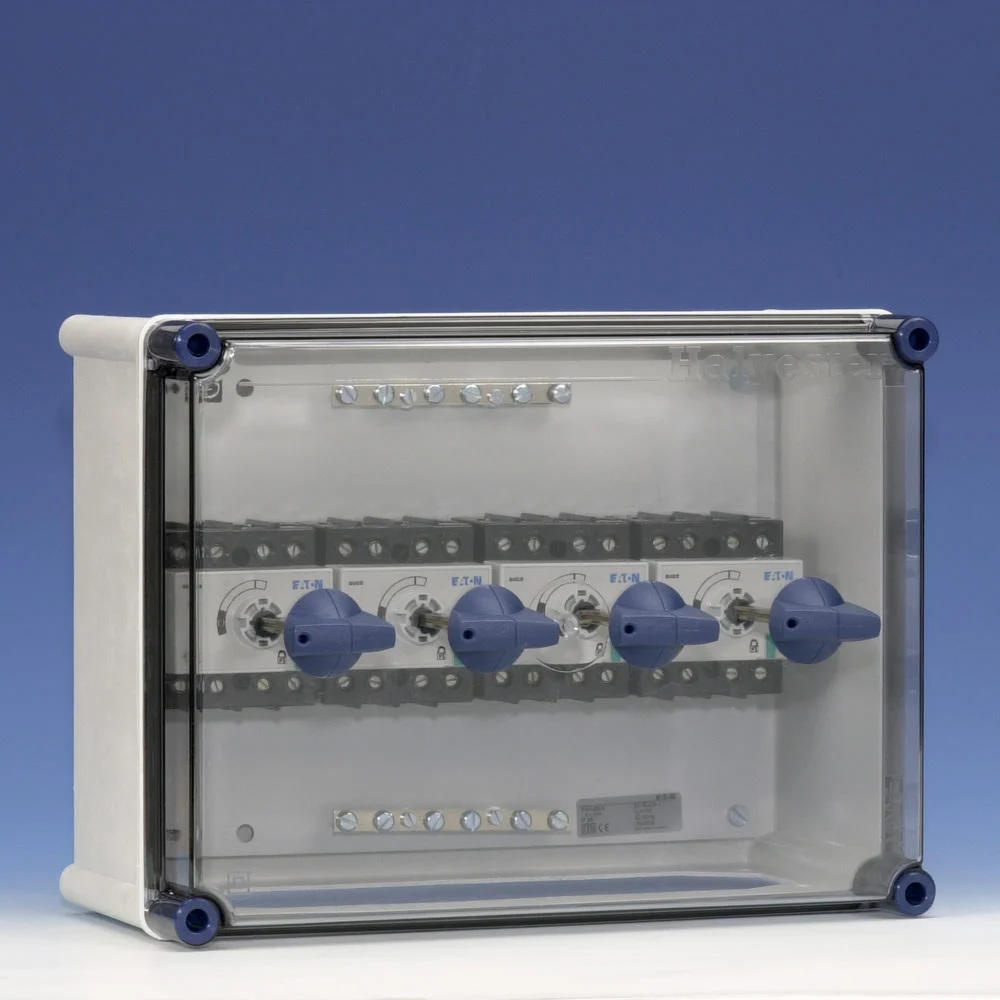

This Halyester SKH 463/4 switch box features a Duco load breaker and has four 63 amp switches. Furthermore, the cabinet is 4-pole switched and open at the top and bottom (see illustration). This switch box from Eaton has a protection rating of IP56 and its dimensions are: 270 millimeters in height, 360 millimeters in width and 171 millimeters in depth.

Specifications

Number of poles : 4
Nominal current (A) : 63
Number of switches : 4
Material : Plastic
Degree of protection (IP) : IP56
Height (mm) : 270
Width (mm) : 360
Depth (mm) : 220
Extension possible : Yes
Positioning on rail system : Universal
Model : With cover
Transparent cover/door : Yes
Operation mechanism behind cover/door : No
