EATON INDUSTRIES Halyester Rail Cabinet – 1864881

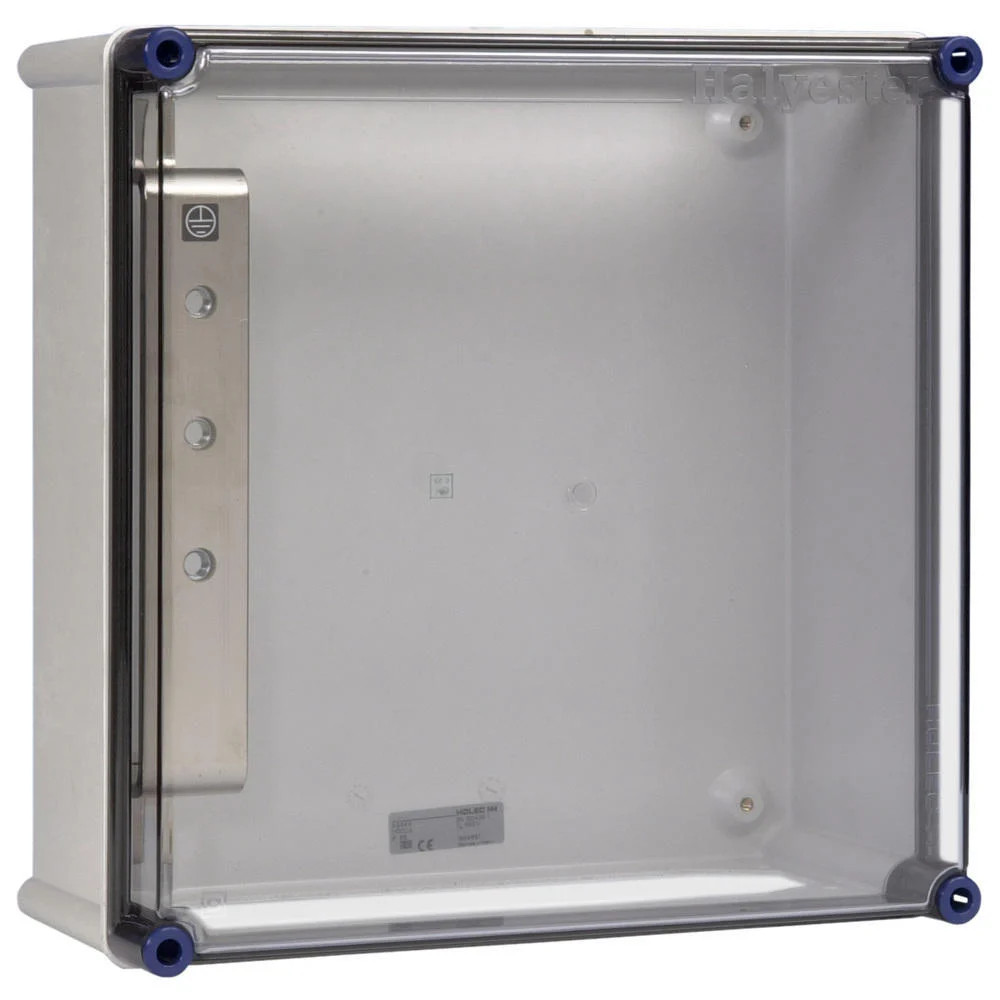

This Halyester ASH 434 junction box for single-core cables is suitable for 630 and 1000 amp switchgear. The shared input of these single-core cables can be connected at the top and bottom of the rail system. The cabinet has 2 grommet openings (see illustration). In addition, the junction box is equipped with 12 input fillers. Furthermore, this Halyester cabinet has a protection rating of IP56 and locking screws that can be operated using a screwdriver.

Specifications

Equipped with busbar : No
Rated current rail system (A) : 1000
Material : Plastic
Height (mm) : 360
Width (mm) : 360
Depth (mm) : 171
Busbar distance (mm) : 0
Extension possible : Yes
Mounting method : Surface mounted (plaster)
With transparent cover : Yes
Short-circuit breaking capacity (Icw) (kA) : 50
Number of poles : 5
Degree of protection (IP) : IP66
Degree of protection (NEMA) : Other
