EATON INDUSTRIES Halyester Rail Cabinet – 1860803

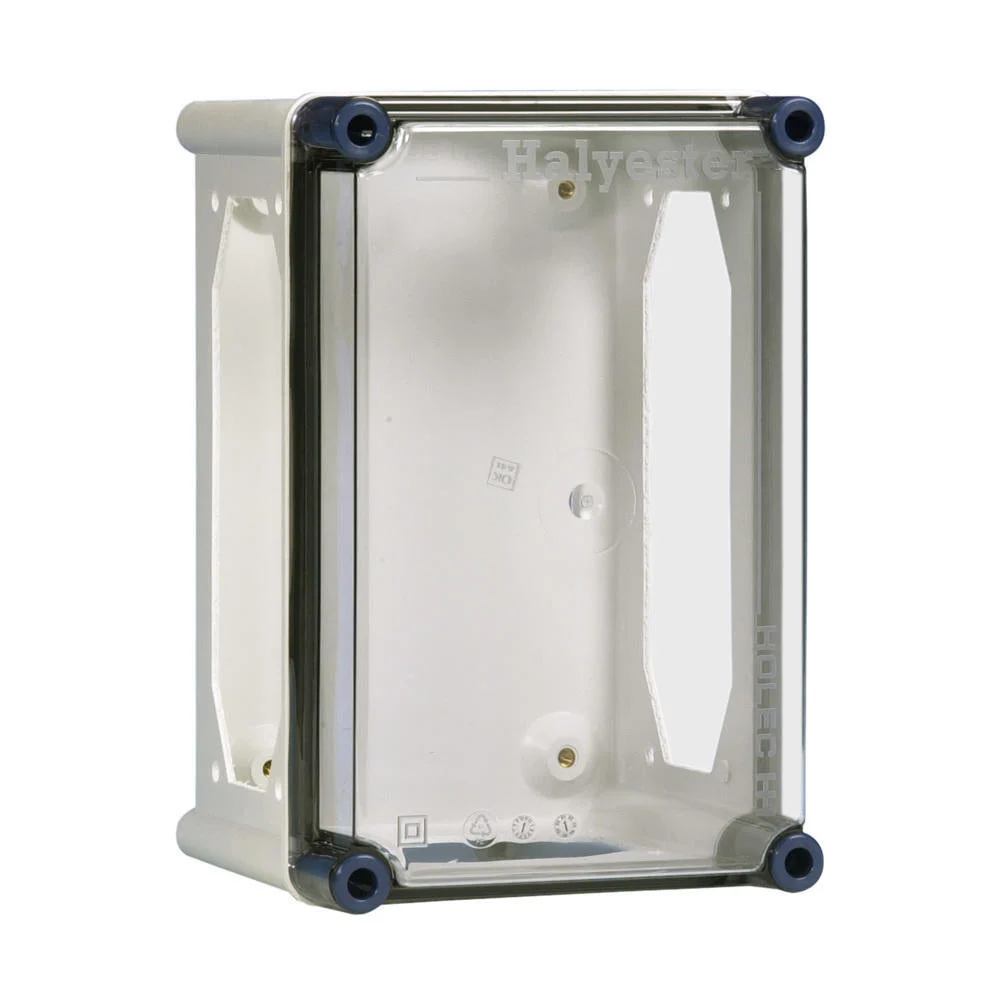

Halyester busbar enclosures are ideally suited for main power distribution within small to very large distributors. This R 432/3232 busbar box with transparent and UV-resistant polycarbonate cover is suitable up to 1000 amps. The dimensions of the track box are 270 in height, 180 in width and 171 millimeters in depth, and all four sides have openings (see image). These openings can be sealed using the corresponding accessories or connected to another track box.

Specifications

Equipped with busbar : No
Rated current rail system (A) : 1000
Material : Plastic
Height (mm) : 270
Width (mm) : 180
Depth (mm) : 171
Busbar distance (mm) : 0
Extension possible : Yes
Mounting method : Other
With transparent cover : Yes
Short-circuit breaking capacity (Icw) (kA) : 32
Number of poles : 5
Degree of protection (IP) : IP66
Degree of protection (NEMA) : Other
