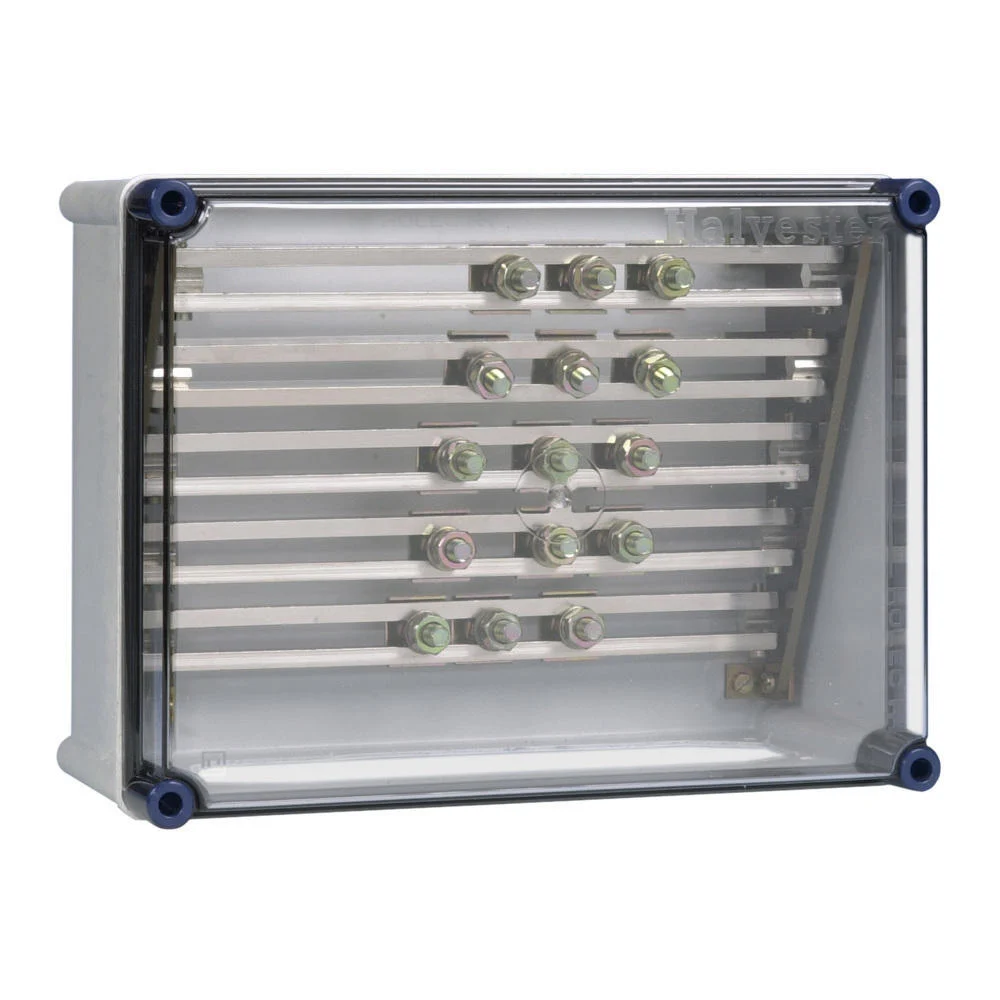

Rail junction boxes are designed for vertical mounting of a power supply cabinet or side mounting of group boxes with an integrated rail system. This is a Halyester SKH 630 busbar junction box up to a maximum of 800 amps and equipped with a top and bottom opening (see illustration). The cabinet can be applied when connecting 3 parallel cables of up to 120 or 2 x 185 square millimeters. The rail connection box is also equipped with 5 connection rails where each rail is equipped with 3 freely sliding M10 connection bolts.
Specifications
Equipped with busbar : Yes
Rated current rail system (A) : 800
Material : Plastic
Height (mm) : 270
Width (mm) : 360
Depth (mm) : 171
Busbar distance (mm) : 40
Extension possible : Yes
Mounting method : Other
With transparent cover : Yes
Short-circuit breaking capacity (Icw) (kA) : 50
Number of poles : 5
Degree of protection (IP) : IP66
Degree of protection (NEMA) : Other
