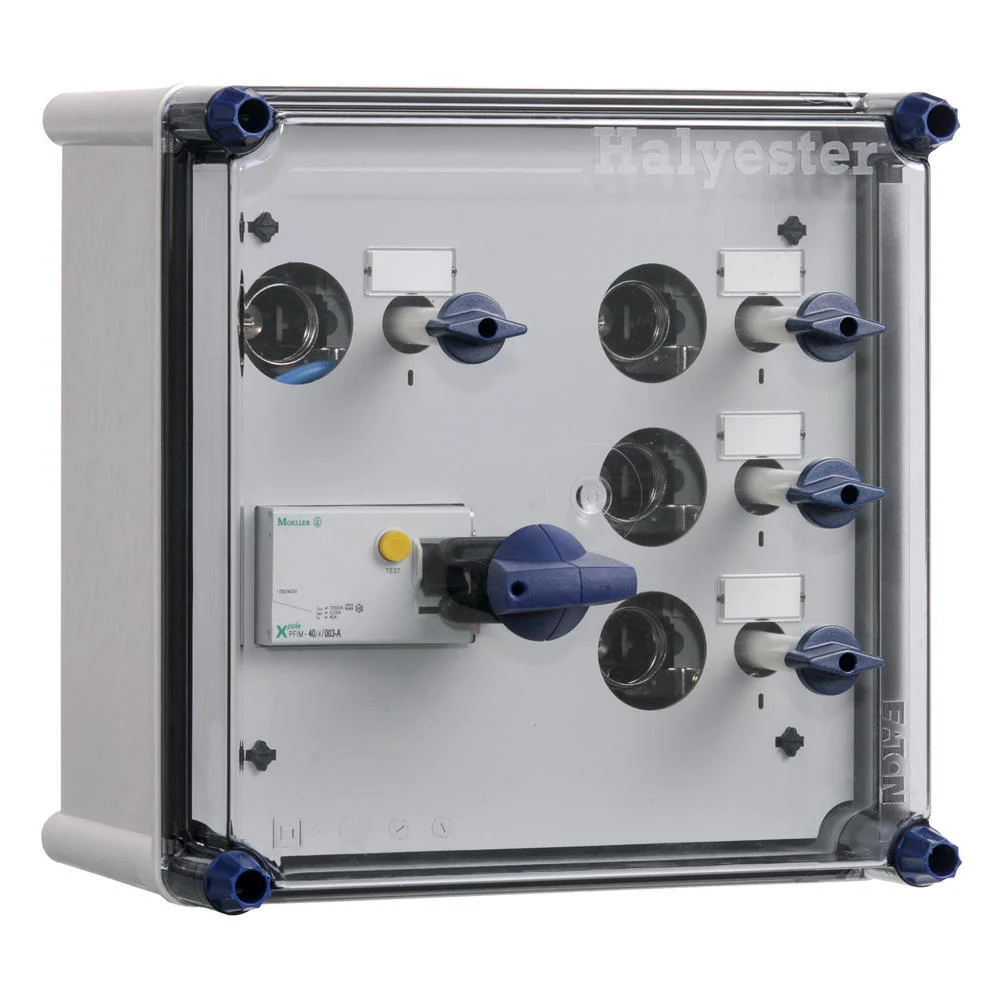

Halyester is designed as a double-insulated system to provide optimal safety for operating personnel. This Eaton Holec Halyester 3 phase group box has 4 light groups, 1 ground fault circuit interrupter and a main switch. Eaton Holec Halyester group boxes are available in different variants.
Specifications
Mounting method : Surface mounted (plaster)
Number of phases : 3
Protection : D-system fuse link
Total number of groups : 4
Number of direct groups : 0
Number of light groups : 4
Number of groups behind earth leakage switch : 4
Number of earth leakage circuit breakers : 0
Number of earth leakage switches 30 mA : 1
Number of earth leakage switches 300 mA : 0
Number of arc fault detection devices AFDD : 0
Protection main switch : No
Number of poles main switch : 4
Main switch rated current (A) : 40
Protection incoming RCD : Yes
Protection high integrity : No
Protection split load : Yes
Protection dual RCD : No
Number of outgoing ways : 4
Suitable for data : No
Cooker group : None
Cooker group suitable as power current group : No
With socket outlet : No
With bell transformer : No
Over voltage protection : No
With meter : No
Material : Plastic
Degree of protection (IP) : IP66
Height (mm) : 270
Width (mm) : 270
Width in number of modular spacings : 0
Depth (mm) : 220
Built-in depth (mm) : 0 mm to 0 mm
Extension possible : Yes
With transparent cover : Yes
Lockable : No
