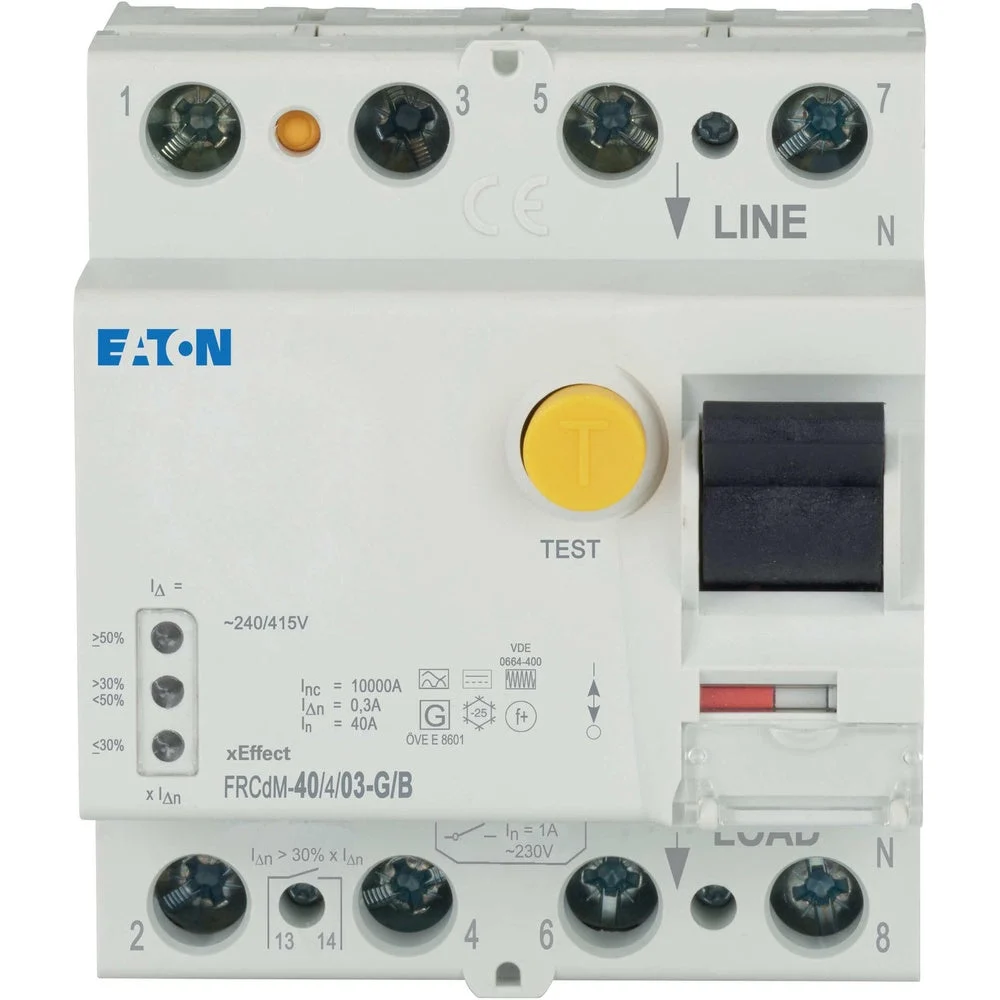

Eaton Moeller series xEffect – FRCdM Type B, B+, Bfq RCCB. Digital residual current circuit-breaker, all-current sensitive, 40 A, 4p, 300 mA, type G/B.
Specifications
Number of poles : 4
Rated voltage (V) : 456
Rated current (A) : 40
Rated fault current (A) : 0.3
Rated insulation voltage Ui (V) : 440
Rated impulse withstand voltage Uimp (kV) : 4
Mounting method : DIN rail
Leakage current type : B
Selective protection : Yes
Short-time delayed tripping : No
Short-circuit breaking capacity (Icw) (kA) : 10
Surge current capacity (kA) : 3
Voltage-type : AC
With interlocking device : Yes
Frequency : 50 Hz
Additional equipment possible : Yes
Degree of protection (IP) : IP20
Width in number of modular spacings : 4
Built-in depth (mm) : 70.5
Ambient temperature during operating (°C) : -25 °C to 50 °C
Pollution degree : 2
Connectable conductor cross section multi-wired (mm²) : 1.5 mm² to 16 mm²
Connectable conductor cross section solid-core (mm²) : 1.5 mm² to 35 mm²
Explosion-proof : No
