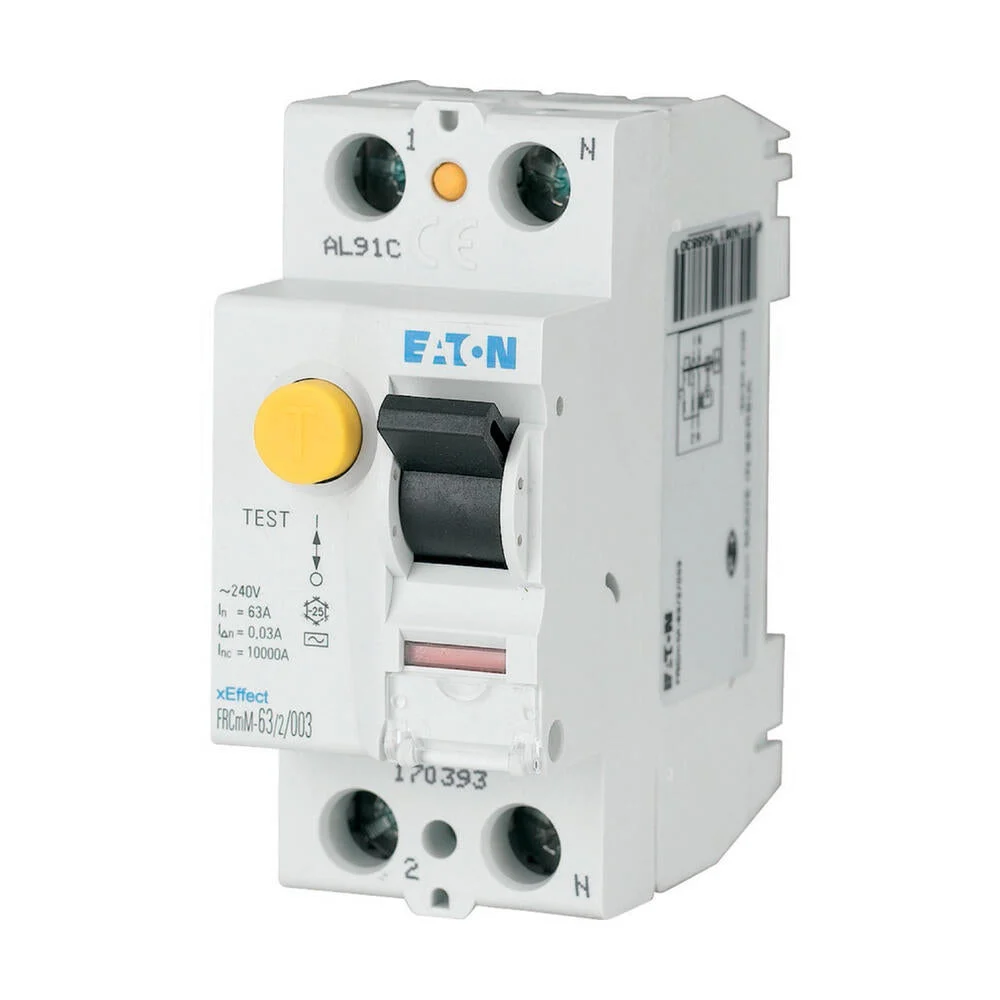

Eaton Industries earth leakage circuit breaker, type leakage current A, nom. (measuring) current 25A, DIN rail, nom. (measuring) voltage 277V, short-circuit resistance (Icw) 10kA, connectable conductor cross-section duck 1.5 – 35mm², width in module units 2, frequency 50/60Hz, connectable conductor cross-section lake 1.5 – 16mm², 2 poles.
Specifications
Number of poles : 2
Rated voltage (V) : 277
Rated current (A) : 25
Rated fault current (A) : 0.03
Rated insulation voltage Ui (V) : 440
Rated impulse withstand voltage Uimp (kV) : 4
Mounting method : DIN rail
Leakage current type : A
Selective protection : No
Short-time delayed tripping : No
Short-circuit breaking capacity (Icw) (kA) : 10
Surge current capacity (kA) : 0.25
Voltage-type : AC
With interlocking device : Yes
Frequency : 50/60 Hz
Additional equipment possible : Yes
Degree of protection (IP) : IP20
Width in number of modular spacings : 2
Built-in depth (mm) : 70.5
Ambient temperature during operating (°C) : -25 °C to 40 °C
Pollution degree : 2
Connectable conductor cross section multi-wired (mm²) : 1.5 mm² to 16 mm²
Connectable conductor cross section solid-core (mm²) : 1.5 mm² to 35 mm²
Explosion-proof : No
