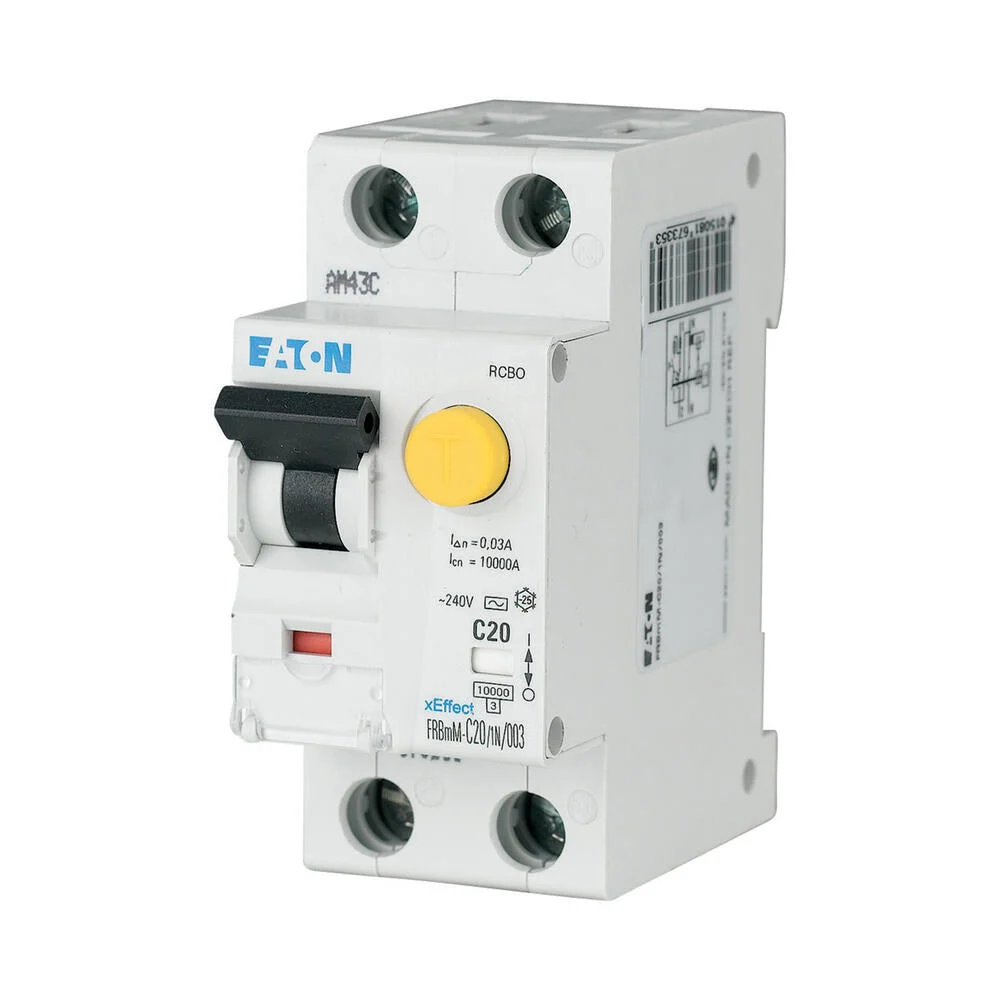

This earth leakage circuit breaker from the FRBmM series from Eaton Moeller has 2 poles, 1 of which is protected (1p+n). The ground fault circuit breaker provides at-a-glance fault current status indication by means of a color indicator LED (red/orange/green) on the front switch. Fault current values are also retrievable during operation. Understanding the cause (overcurrent or ground fault) in case of shutdown. Also, this earth leakage circuit breaker additionally protects against specific non-flattened forms of DC fault currents. The rated voltage is 240V and the rated current is 10A.
Specifications
Number of poles (total) : 2
Number of protected poles : 1
Rated voltage (V) : 240
Rated insulation voltage Ui (V) : 500
Rated impulse withstand voltage Uimp (kV) : 4
Rated current (A) : 10
Rated fault current (A) : 0.03
Leakage current type : A
Current limiting class : 3
Rated short-circuit breaking capacity according to EN 61009 (kA) : 10
Rated short-circuit breaking capacity according to IEC 60947-2 (kA) : 15
Rated short-circuit breaking capacity Icn according to EN 61009-1 (kA) : 10
Disconnection characteristic : Undelayed
Surge current capacity (kA) : 0.25
Voltage-type : AC
Frequency : 50 Hz
Release characteristic : C
Concurrently switching neutral conductor : Yes
With interlocking device : No
Over voltage category : 3
Pollution degree : 2
Ambient temperature during operating (°C) : -25 °C to 40 °C
Width in number of modular spacings : 2
Built-in depth (mm) : 75.5
Flush-mounted installation : No
Anti-nuisance tripping version : No
Degree of protection (IP) : IP20
Connectable conductor cross section solid-core (mm²) : 1 mm² to 25 mm²
Connectable conductor cross section multi-wired (mm²) : 1 mm² to 25 mm²
