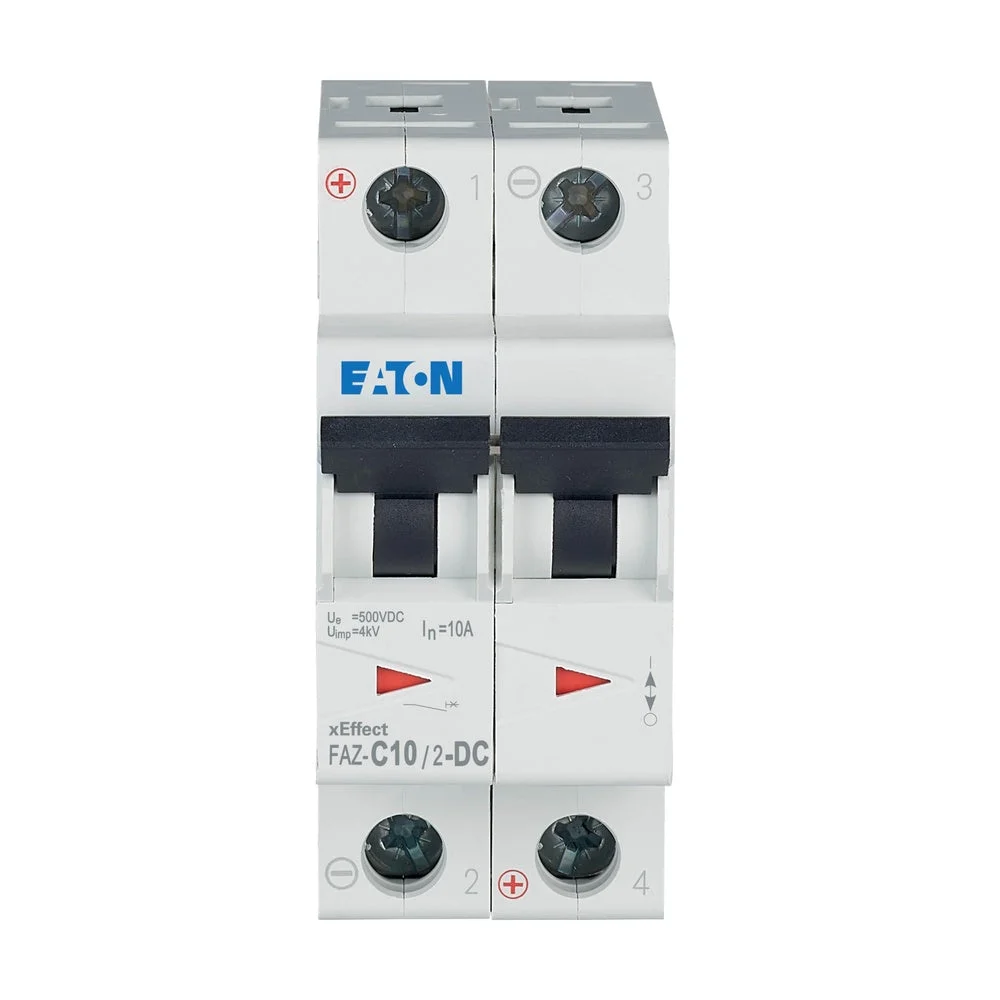

EATON INDUSTRIES FAZ Circuit Breaker – 279138

Eaton Industries FAZ C circuit breaker, tripping characteristic C, nom. (measuring) current 10A, voltage type DC, 2 poles (total), width in module units 2, ancillary device possible, connectable conductor cross-section duck 1 – 25mm², 2 protected poles, nom. (measuring) voltage 250V.

Specifications

Built-in depth (mm) : 70.5
Release characteristic : C
Number of poles (total) : 2
Number of protected poles : 2
Rated current (A) : 10
Rated voltage (V) : 250
Rated insulation voltage Ui (V) : 440
Rated impulse withstand voltage Uimp (kV) : 4
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V (kA) : 0
Voltage-type : DC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V (kA) : 0
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V (kA) : 10
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V (kA) : 10
Frequency (Hz) : 50 Hz to 60 Hz
Current limiting class : 3
Flush-mounted installation : No
Concurrently switching neutral conductor : No
Over voltage category : 3
Pollution degree : 2
Additional equipment possible : Yes
Width in number of modular spacings : 2
Degree of protection (IP) : IP20
Ambient temperature during operating (°C) : -25 °C to 75 °C
Connectable conductor cross section multi-wired (mm²) : 1 mm² to 25 mm²
Connectable conductor cross section solid-core (mm²) : 1 mm² to 25 mm²
Explosion-proof : No
