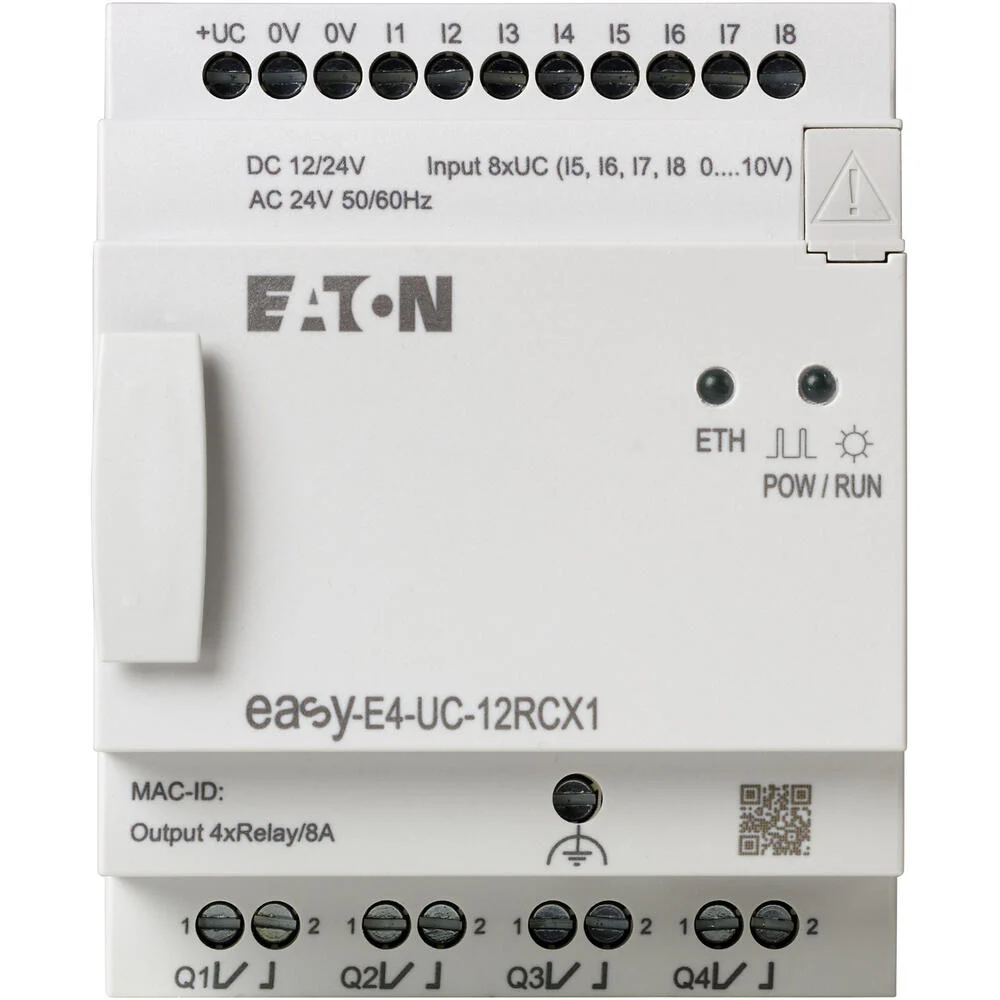

Eaton Moeller series EASY Control relays, easyE4 (expandable, Ethernet), 12/24 V DC, 24 V AC, Inputs Digital: 8, of which can be used as analog: 4, screw terminal.
Specifications
Supply voltage AC 50 Hz (V) : 20.4 V to 26.4 V
Supply voltage AC 60 Hz (V) : 20.4 V to 26.4 V
Supply voltage DC (V) : 10.2 V to 28.8 V
Voltage type of supply voltage : AC/DC
Switching current (A) : 8
Number of analogue inputs : 0
Number of analogue outputs : 0
Number of digital inputs : 4
Number of digital outputs : 4
With relay output : Yes
Number of HW-interfaces industrial Ethernet : 1
Number of interfaces PROFINET : 0
Number of HW-interfaces RS-232 : 0
Number of HW-interfaces RS-422 : 0
Number of HW-interfaces RS-485 : 0
Number of HW-interfaces serial TTY : 0
Number of HW-interfaces USB : 0
Number of HW-interfaces parallel : 0
Number of HW-interfaces Wireless : 0
Number of HW-interfaces other : 0
With optical interface : No
Supporting protocol for TCP/IP : Yes
Supporting protocol for PROFIBUS : No
Supporting protocol for CAN : No
Supporting protocol for INTERBUS : No
Supporting protocol for ASI : No
Supporting protocol for KNX : No
Supporting protocol for Modbus : Yes
Supporting protocol for Data-Highway : No
Supporting protocol for DeviceNet : No
Supporting protocol for SUCONET : No
Supporting protocol for LON : No
Supporting protocol for PROFINET IO : No
Supporting protocol for PROFINET CBA : No
Supporting protocol for SERCOS : No
Supporting protocol for Foundation Fieldbus : No
Supporting protocol for EtherNet/IP : No
Supporting protocol for AS-Interface Safety at Work : No
Supporting protocol for DeviceNet Safety : No
Supporting protocol for INTERBUS-Safety : No
Supporting protocol for PROFIsafe : No
Supporting protocol for SafetyBUS p : No
Supporting protocol for other bus systems : No
Radio standard Bluetooth : No
Radio standard Wi-Fi 802.11 : No
Radio standard GPRS : No
Radio standard GSM : No
Radio standard UMTS : No
IO link master : No
Redundancy : No
With display : No
Degree of protection (IP) : IP20
Basic device : Yes
Expandable : Yes
Expansion device : No
With time switch clock : Yes
Rail mounting possible : Yes
Wall mounting/direct mounting : Yes
Front built-in possible : Yes
Rack-assembly possible : No
Suitable for safety functions : No
SIL (IEC 61508) : None
Performance level (EN ISO 13849-1) : None
Appendant operation agent (Ex ia) : No
Appendant operation agent (Ex ib) : No
Explosion safety gas : None
Explosion safety dust : None
Width (mm) : 72
Height (mm) : 90
Depth (mm) : 58
