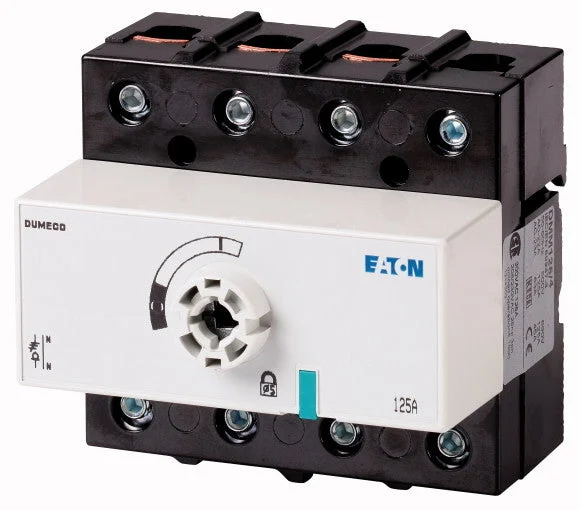

Eaton Industries Dumeco switch-disconnector, main switch design, working switch design, 1 switch, max. Rated operating voltage Ue at A 690V, operating voltage (measurement voltage) 690V, rated continuous current Iu 125A, rated continuous current, AC-23, 400 V 125A, rated continuous current, AC-21.
Specifications
Version as main switch : Yes
Version as maintenance-/service switch : Yes
Version as safety switch : No
Version as emergency stop installation : No
Version as reversing switch : No
Number of switches : 1
Max. rated operation voltage Ue AC (V) : 690
Rated operating voltage (V) : 690 V to 690 V
Rated permanent current Iu (A) : 125
Rated permanent current at AC-23, 400 V (A) : 66
Rated permanent current at AC-21, 400 V (A) : 125
Rated operation power at AC-3, 400 V (kW) : 0
Rated short-time withstand current lcw (kA) : 2.5
Rated operation power at AC-23, 400 V (kW) : 30
Switching power at 400 V (kW) : 0
Conditioned rated short-circuit current Iq (kA) : 50
Number of poles : 4
Number of auxiliary contacts as normally closed contact : 0
Number of auxiliary contacts as normally open contact : 0
Number of auxiliary contacts as change-over contact : 0
Motor drive optional : No
Motor drive integrated : No
Voltage release optional : No
Device construction : Built-in device fixed built-in technique
Suitable for floor mounting : Yes
Suitable for front mounting 4-hole : No
Suitable for front mounting center : No
Suitable for distribution board installation : Yes
Suitable for intermediate mounting : No
Color control element : Other
Type of control element : Other
Interlockable : No
Type of electrical connection of main circuit : Screw connection
Degree of protection (IP), front side : IP20
Degree of protection (NEMA) : Other
