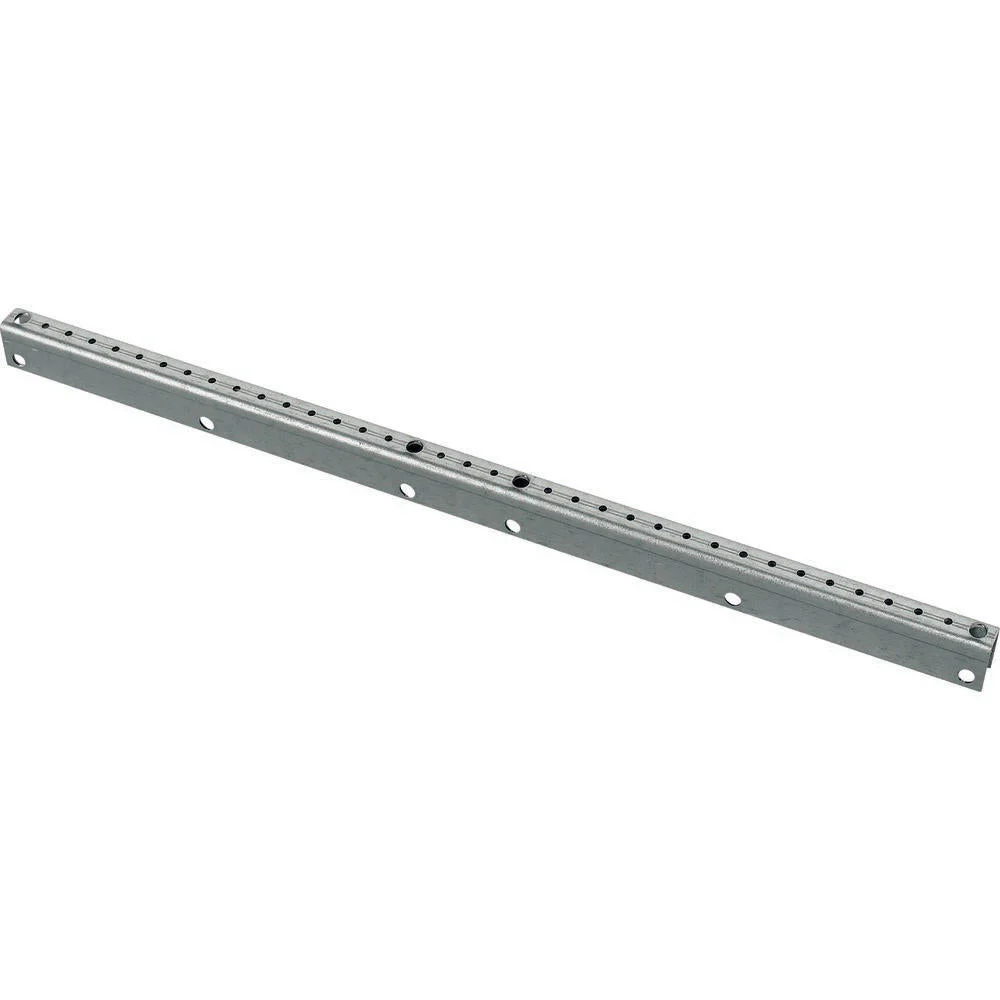

Eaton Horizontal Mounting Rail 715mm For Module Width 750mm – 143853

The Eaton Industries XBoard XVTL EP profile for cabinet/desk is a steel-based product with a length of 16mm. It is designed using metrical specifications and features a screw fixation. This profile has a height of 16mm for the supporting rail. The EP system is a standard flush-mounting system intended for surface mounting. It comes with factory-finished, type-tested switchgear assemblies. The surface of the product is galvanized for better durability and performance.

Specifications

Length (mm) : 25
Width (mm) : 715
Height (mm) : 16
Slit width (mm) : 9.5
Material thickness (mm) : 2
Profile shape : U-profile
Model : Singular profile
Type of perforation : 3 sides punched
Hole width (mm) : 3.6
With toothing : No
Snap-off : No
Load bearing capacity (kN) : 0
Area moment of inertia Iy (cm4) : 0
Area of inertia Iz (cm4) : 0
Moment of resistance Wy (cm³) : 0
Moment of resistance Wz (cm³) : 0
Suitable for circuit integrity : No
Material : Steel
Material quality : Other
Surface protection : Galvanic/electrolytic zinc plated
Color : Other
RAL-number : 0
Weight (kg) : 0.582
