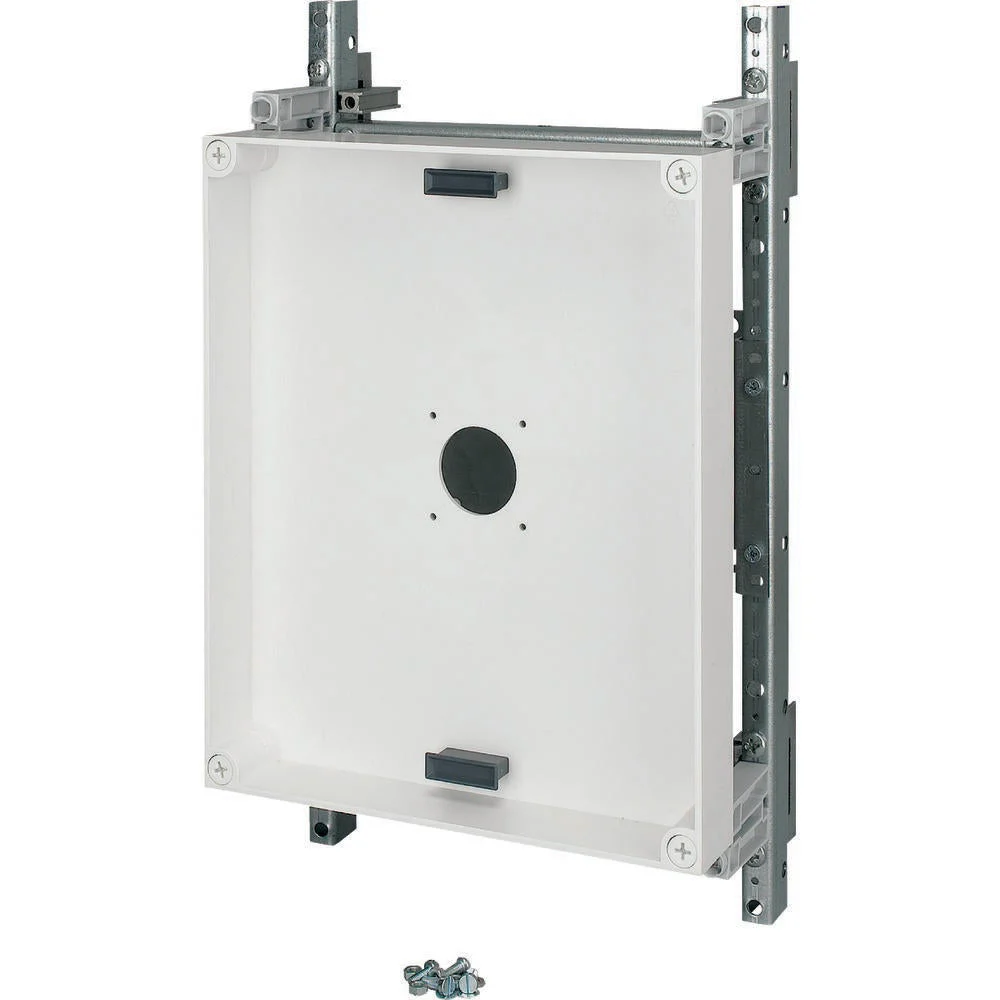

The Eaton Industries XBoard EP is a flush-mounting unit designed for the assembly of components. It’s constructed from steel and measures 500mm (width) x 211.5mm (depth) x 450mm (height) with an installation depth of 211.5mm. The unit also comes with a cover and a mounting plate, the module type being a mounting plate. It’s suitable for Dumeco 630 to 1000A 3/4P cabinet series for optimal functionality. This system is crafted for surface installation of factory-finished, type-tested switchgear assemblies.
Specifications
Height (mm) : 450
Width (mm) : 500
Depth (mm) : 145
With cover : Yes
Plastic cover plate : Yes
Number of poles : 4
Suitable for switch disconnector : Yes
Equipped with switch disconnector : No
Suitable for power circuit breaker : No
Equipped with power circuit-breaker : No
Suitable for no-voltage switch : No
Equipped with no-voltage switch : No
Suitable for reverser : No
Equipped with reverser : No
Rated operation current (A) : 1000
Number of switches : 1
With auxiliary terminal : No
