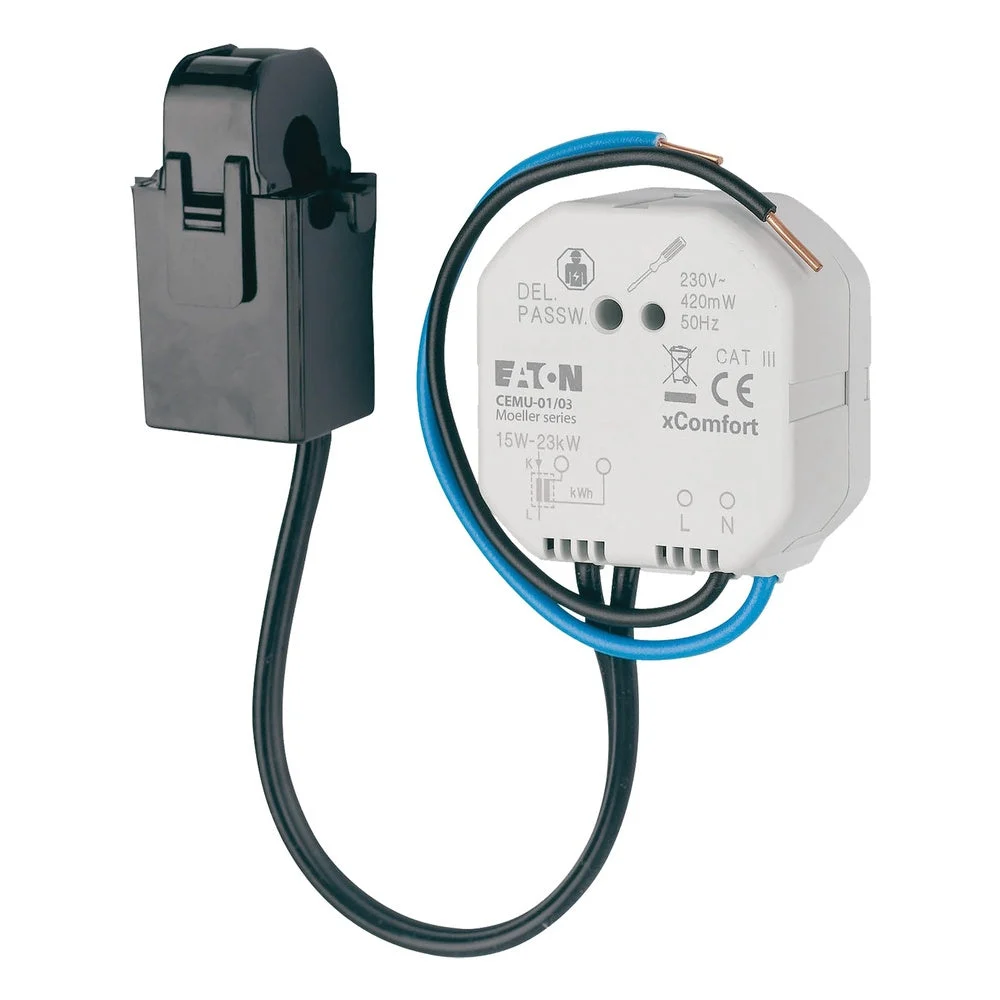

The Eaton Industries XComfort energy management bus system utilizes the Zenergy measuring sensor with external sensors to record and transfer solar energy to the room manager’s display. Designed for higher outputs ranging from 15W-23kW, it determines current, voltage, active power, and electrical energy. The external sensor connects to the electrical system by the output line, preferably at the feed point. It installs in a switch, junction, or installation box, is unsealed, and is not suitable for billing purposes, and it’s incompatible with the xComfort Bridge.
Specifications
Bus system KNX : No
Bus system KNX radio : No
Bus system radio frequent : Yes
Bus system LON : No
Bus system Powernet : Yes
Other bus systems : xComfort
Radio frequent bidirectional : Yes
Model : Other
Connection type : Convertible
Reactive power : No
Approved according to PTB : No
S0 impulse interface : None
Tariff switch : No
Accuracy class : 0
Min. depth of built-in installation box (mm) : 26
