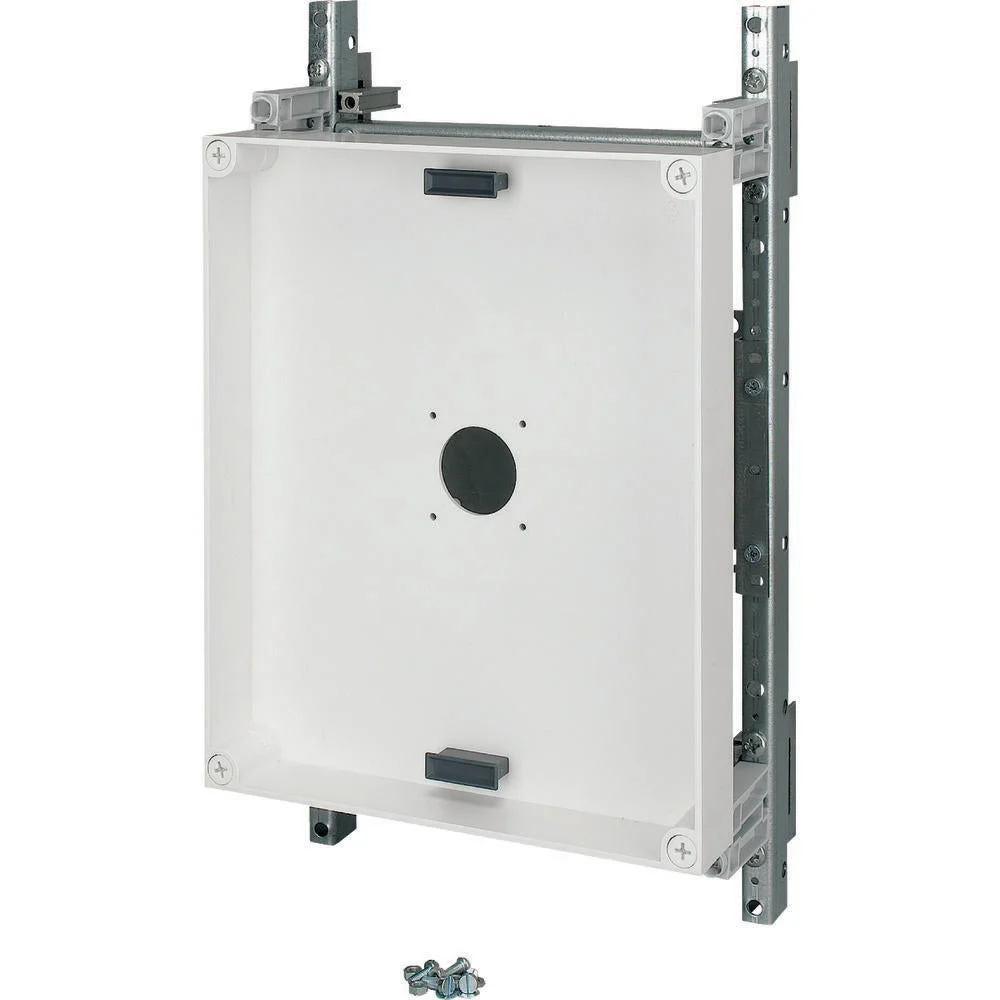

The Eaton Industries XBoard EP flush-mounting unit is designed for component assembly and is crafted from steel. The unit measures 500×211.5x450mm, with an installation depth of 211.5mm. It comes with a covering and a mounting plate, specifically a module type mounting plate. This unit is suitable for the Dumeco 1250 to 1600A 3/4 cabinet series. The XBoard flush-mounting EP system is a surface mount assembly that comes factory finished and is type-tested.
Specifications
Height (mm) : 450
Width (mm) : 500
Depth (mm) : 80
With cover : Yes
Plastic cover plate : Yes
Number of poles : 4
Suitable for switch disconnector : Yes
Equipped with switch disconnector : No
Suitable for power circuit breaker : No
Equipped with power circuit-breaker : No
Suitable for no-voltage switch : No
Equipped with no-voltage switch : No
Suitable for reverser : No
Equipped with reverser : No
Rated operation current (A) : 1600
Number of switches : 1
With auxiliary terminal : No
