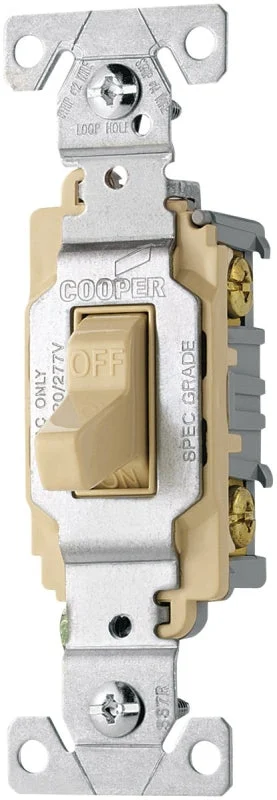

Side wire terminals accept up to number 10 solid or stranded wire. Rated for fluorescent lighting fixtures typical in commercial applications. 0.050 in THK steel mounting strap zinc-plated for corrosion resistance. Ground screw terminal standard. 20 A, 120/277 V. Meets all UL 20 requirements, Federal Specifications WS 896.
Unit: EA
UPC: 032664488351
Model Number: CS220V
Features
- Patent pending spring cup toggle design for robust actuation
- Terminals accept up to #10 AWG solid or stranded
- Terminal screws backed out ready for wiring
- Tri-combo head mounting and terminal screws ease installation
Additional Information
- Actuator Type: Cam Toggle
- Color: Ivory
- Wattage Rating: 1 to 2 hp
- Current Rating: 20 A
- Dielectric Strength: 1500 V
- Contact Material: Silver
- Housing Material: Nylon
- Mounting Type: Wall
- Number of Poles: 2
- Temperature Rating: -20 to 60 deg C
- Terminal Type: Screw
- Voltage Rating: 120/277 V
- Wattage Rating: 1 to 2 hp
