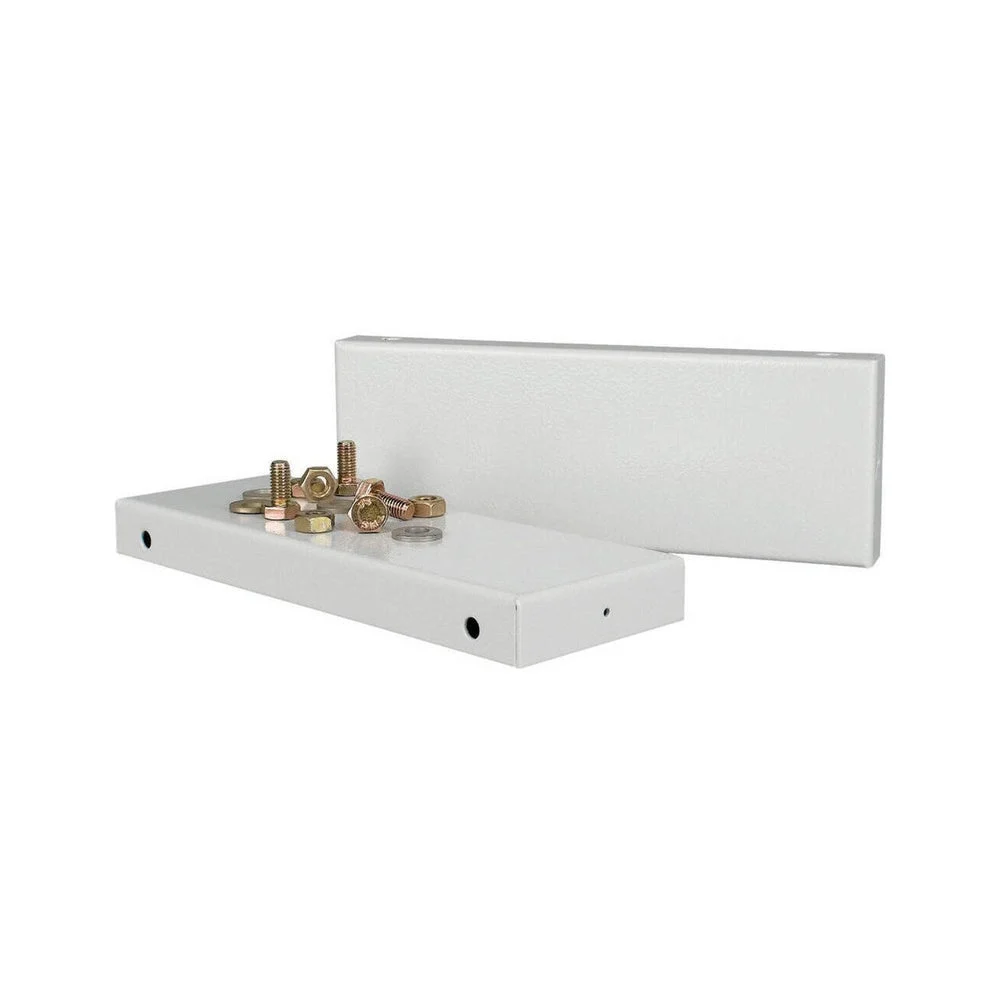

The Eaton Industries XEnergy base for cabinet/podium is a sturdy white steel construction measuring 65x250x205mm. It features facilities for both front and back settings and boasts a maximum load capacity of 250kg. The base is specifically designed for a cabinet construction width of 28mm and a construction depth of 249mm. This product offers corner protection for surface-mounted distribution boards, BPZ-SS-.. With a height of 200mm and depth of 249mm, the base adheres to IP30 standards. It’s made of sheet steel that’s painted with a powder spray, adhering to RAL 9016 standards. This base unit comes fitted with two corner protections along with several mounting accessories.
Specifications
Model : Base front/back
Material : Steel
Color : White
Max. load capacity (kg) : 250
Width (mm) : 65
Height (mm) : 205
Depth (mm) : 250
Suitable for enclosure building width (mm) : 28
Suitable for enclosure building depth (mm) : 249
Suitable for aeration/de-aeration : No
Suitable for outdoor set-up : No
Suitable for cable patch : No
