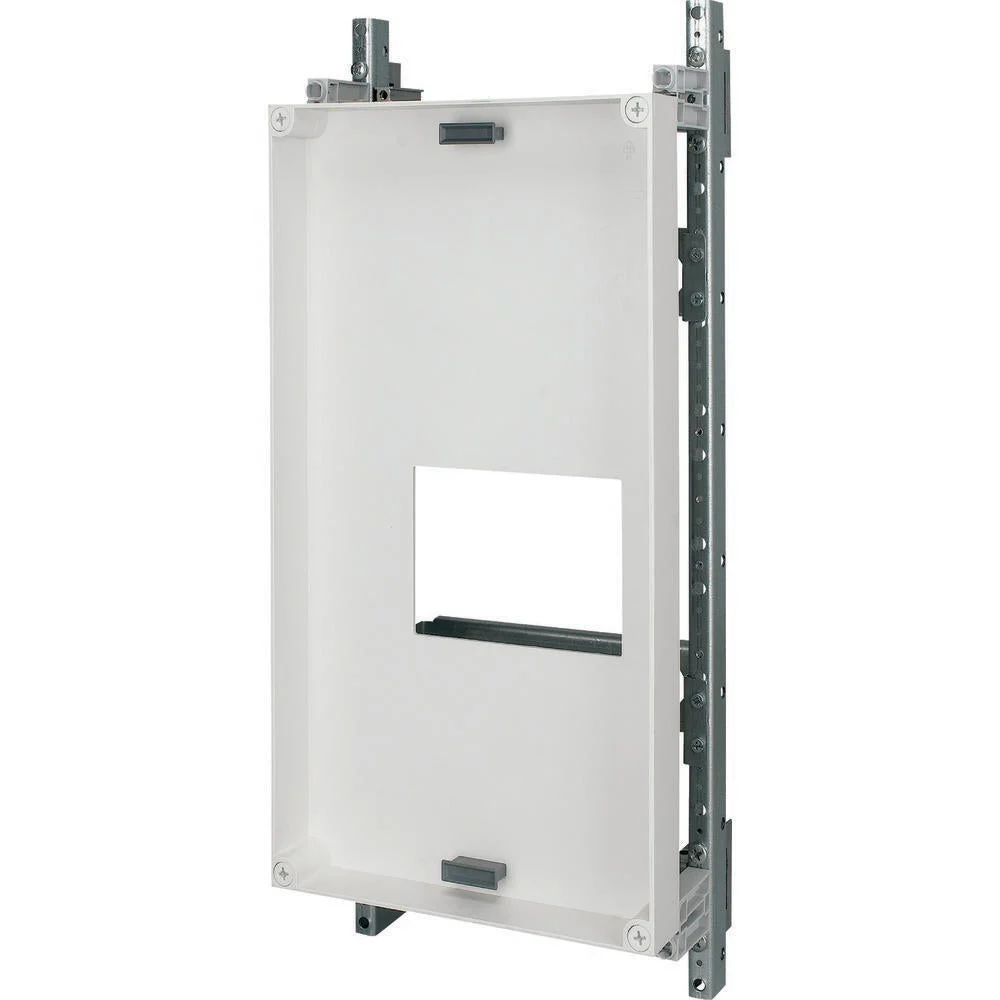

The Eaton Industries XBoard EP is a flush-mounting unit designed for the assembly of components. Constructed from steel, it measures 500mm in width, 138.5mm in depth, and 750mm in height. It comes with a mounting plate for module assembly and a cover, with an embedding depth of 138.5mm. It is suitable for the NZM4 1600A 3/4P switchgear assembly series. This system is for surface-mounting and is type-tested, ensuring it is factory finished and ready for use.
Specifications
Height (mm) : 750
Width (mm) : 500
Depth (mm) : 60
With cover : Yes
Plastic cover plate : Yes
Number of poles : 4
Suitable for switch disconnector : Yes
Equipped with switch disconnector : No
Suitable for power circuit breaker : Yes
Equipped with power circuit-breaker : No
Suitable for no-voltage switch : No
Equipped with no-voltage switch : No
Suitable for reverser : No
Equipped with reverser : No
Rated operation current (A) : 1600
Number of switches : 1
With auxiliary terminal : No
