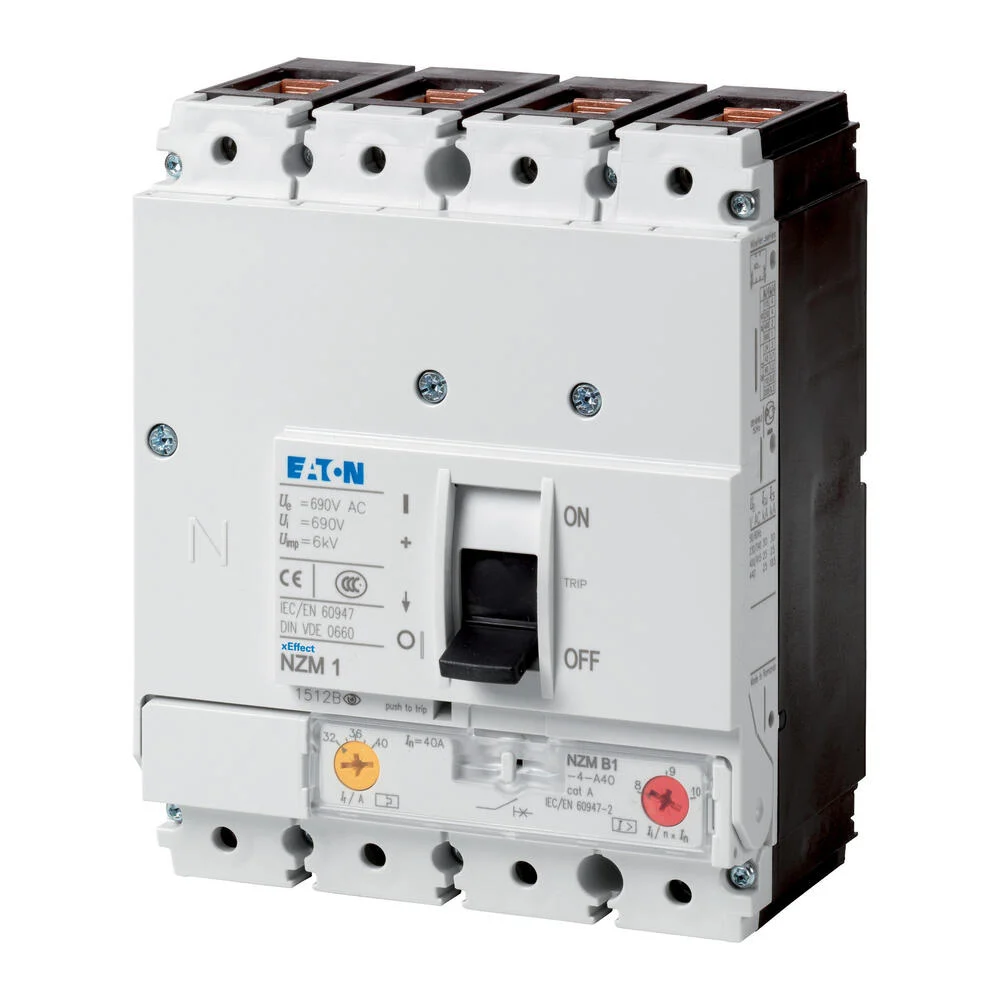

The Eaton Industries NZM1 is a four-pole circuit breaker with a rated continuous current (In = Iu) of 40A and a nominal voltage of 690V. Its switching capacity at 400/415 V 50 Hz (Icu) is 50kA. The overload protection setting range is between 32-40A, while the instantaneous short circuit setting range is 8-10A. The unit comes in a fixed installation type and features a box terminal for improved ease of use. Compliant with the IEC standards, this circuit-breaker is designed to provide protection for both the system and cables.
Specifications
Rated permanent current Iu (A) : 40
Rated voltage (V) : 690 V to 690 V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz (kA) : 50
Overload release current setting (A) : 32 A to 40 A
Adjustment range short-term delayed short-circuit release (A) : 0 A to 0 A
Adjustment range undelayed short-circuit release (A) : 8 A to 10 A
Integrated earth fault protection : No
Type of electrical connection of main circuit : Frame clamp
Device construction : Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting : No
DIN rail (top hat rail) mounting optional : Yes
Number of auxiliary contacts as normally closed contact : 0
Number of auxiliary contacts as normally open contact : 0
Number of auxiliary contacts as change-over contact : 0
With switched-off indicator : No
With integrated under voltage release : No
Number of poles : 4
Position of connection for main current circuit : Front side
Type of control element : Rocker lever
Complete device with protection unit : Yes
Motor drive integrated : No
Motor drive optional : No
Degree of protection (IP) : IP20
