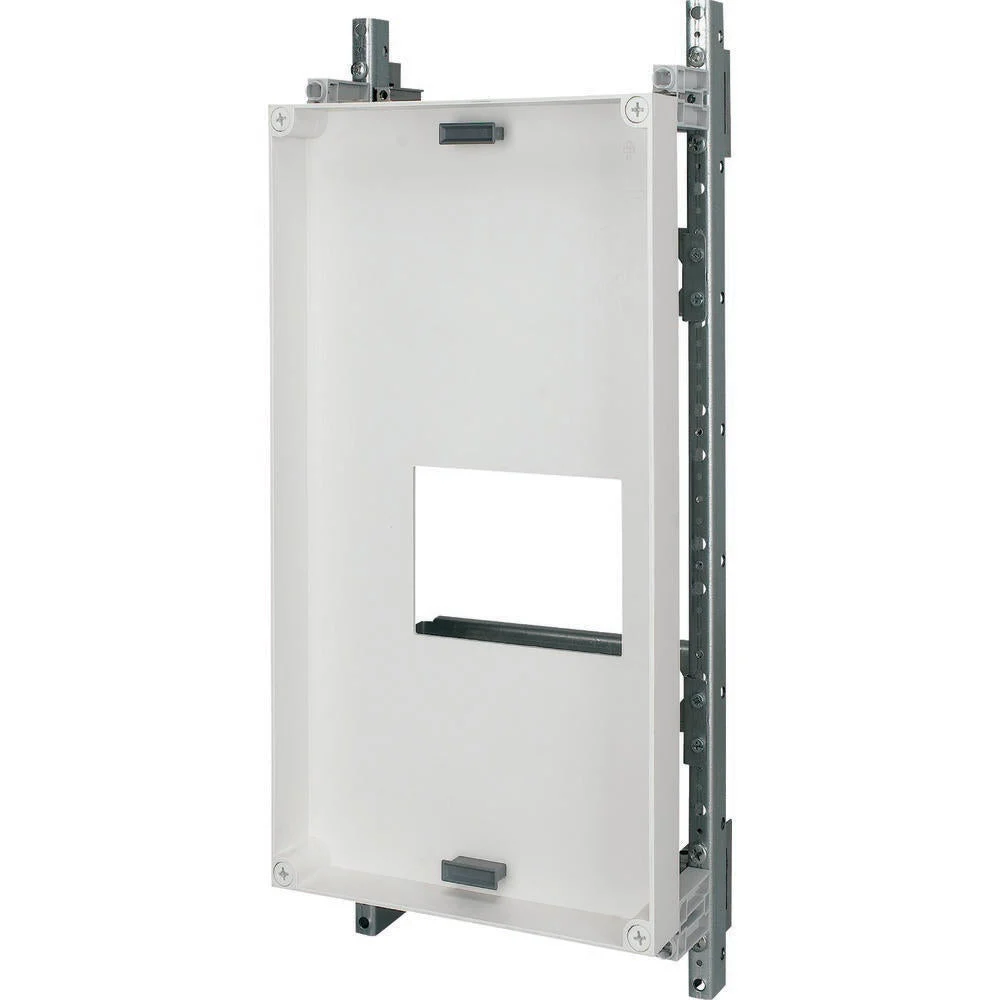

The Eaton Industries XBoard EP is a flush-mounting unit designed for component assembly. It is constructed from steel and measures 250mm by 107mm by 300mm, with an assembly depth of 107mm. The unit comes with a cover and a mounting plate, which is of the module type. It is intended for use with the NZM1 300A 3/4P series cabinet. As a standard EP system, it is designed for surface mounting of factory-finished, type-tested switchgear assemblies.
Specifications
Height (mm) : 300
Width (mm) : 250
Depth (mm) : 41.5
With cover : Yes
Plastic cover plate : Yes
Number of poles : 4
Suitable for switch disconnector : Yes
Equipped with switch disconnector : No
Suitable for power circuit breaker : Yes
Equipped with power circuit-breaker : No
Suitable for no-voltage switch : No
Equipped with no-voltage switch : No
Suitable for reverser : No
Equipped with reverser : No
Rated operation current (A) : 160
Number of switches : 1
With auxiliary terminal : No
