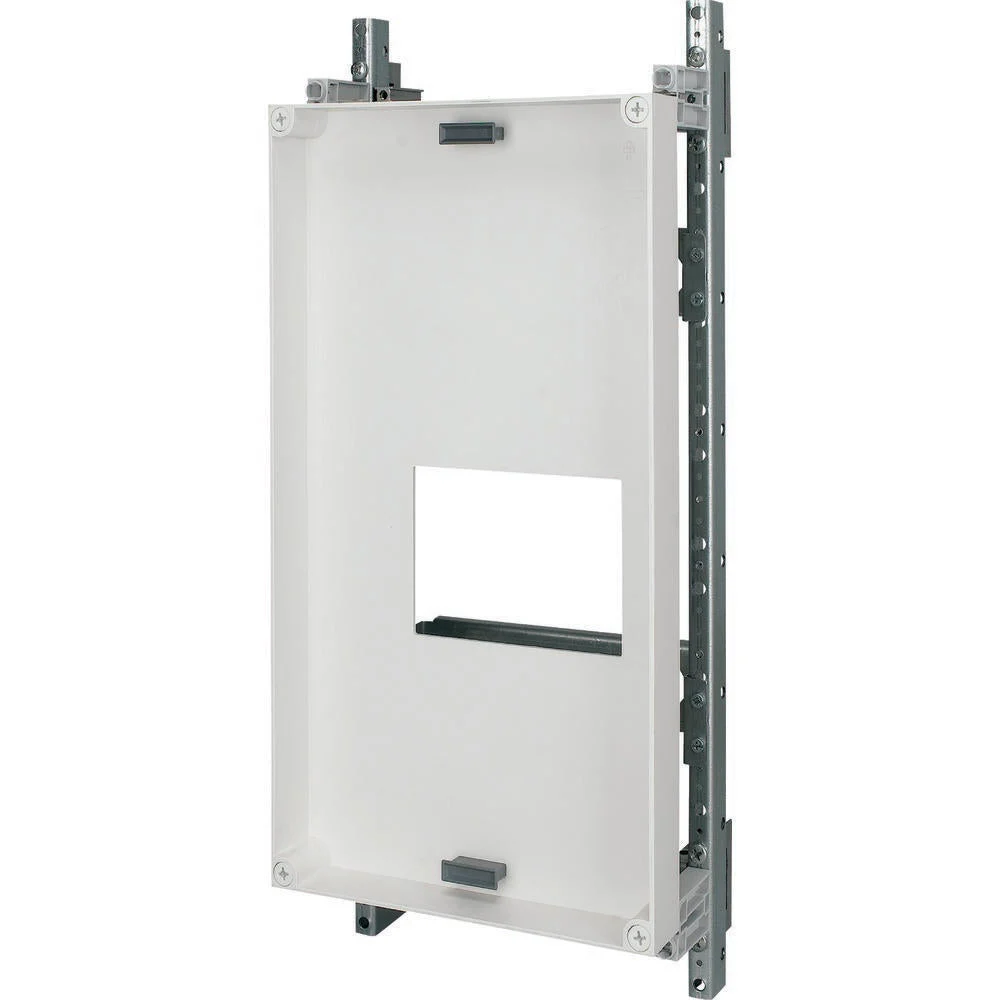

The Eaton Industries XBoard EP is a flush-mounting unit designed for component assembly. The unit, made from steel, has dimensions 250mm x 159.5mm x 450mm, and an installation depth of 159.5mm. It includes a cover and mounting plate. This module type mounting plate is specifically suitable for NZM3 630A 3/4P Rotary Case series. The EP system is intended for surface mounting factory finished, type-tested switchgear assemblies.
Specifications
Height (mm) : 450
Width (mm) : 250
Depth (mm) : 60
With cover : Yes
Plastic cover plate : Yes
Number of poles : 4
Suitable for switch disconnector : Yes
Equipped with switch disconnector : No
Suitable for power circuit breaker : Yes
Equipped with power circuit-breaker : No
Suitable for no-voltage switch : No
Equipped with no-voltage switch : No
Suitable for reverser : No
Equipped with reverser : No
Rated operation current (A) : 630
Number of switches : 1
With auxiliary terminal : No
